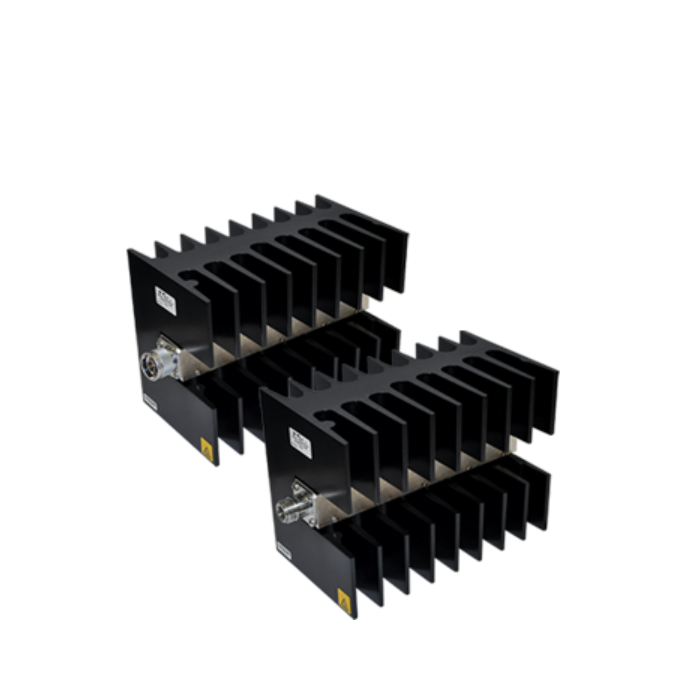

Bird 150-SA-MFA-03 Bi-Directional RF Attenuators (150W, SA series, Male/Female, SMA, 03dB)
Manufacturer: Bird Model: 150-SA-MFA-03 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power Rating: 150 W
Connector: SMA
VSWR and Frequency Range:
1.10:1 from DC to 1 GHz
1.25:1 from 1 to 2.4 GHz
Coolant Method: Dry, Convection Cooled
Impedance: 50 Ohms
Temperature: -40 to 40 °C (-40 to 104 °F)
PIM: -110 dBc Min.
Humidity: 95% non-condensing
Standard Attenuation Values: 3dB
Dimensions: 9.1” x 4.0” x 5.0”/ 232 x 102 x 127 mm
Weight: 5.5 lbs./ 2.5 kg
Finish: Black Anodized Aluminum
