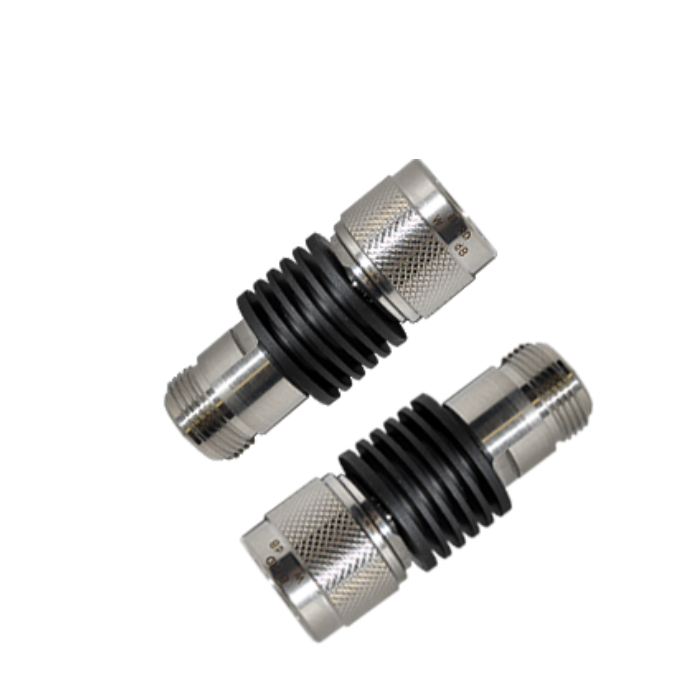

Bird 5-6A Bi-Directional RF Attenuators (5W)

Power Rating: 5 W

Connector: N

VSWR and Frequency Range: 1.25:1 from DC to 6 GHz

Coolant Method: Dry, Convection Cooled

Impedance: 50 Ohm

Temperature: -40 to 40 °C (-40 to 104 °F)

PIM: -110 dBc Min.

AC Power: None

Humidity: 95% non-condensing

Standard Attenuation Values: 3, 6, 10, 20, 30 dB

Dimensions: Dia. 2.4” x 0.9” / 61 x 23 mm

Weight: 3.0 oz./86 g

Finish: Stainless Steel
