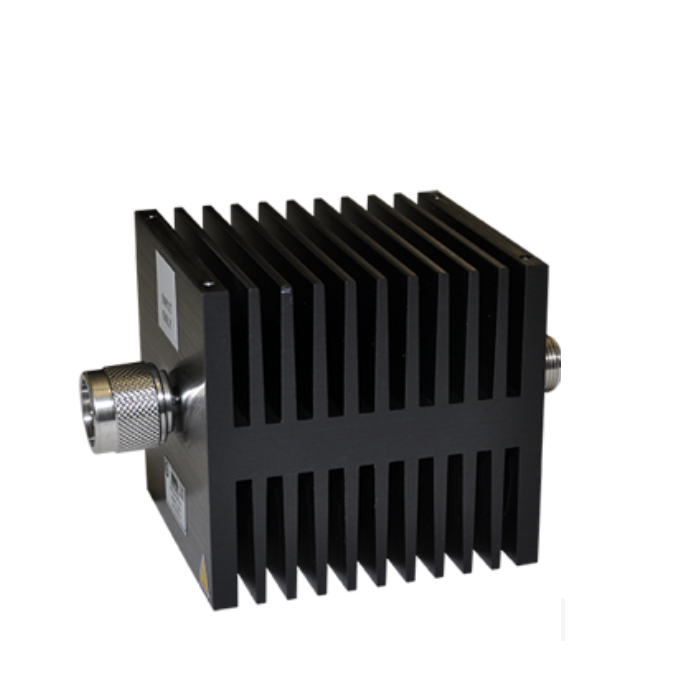

Bird 50-18A-MFN-03 Bi-Directional RF Attenuators (50 W, 18GHz, Male/Female, N, 03dB)

Power Rating: 50 W

Connector: N

VSWR and Frequency Range:

        DC to 6 GHz: 1.25:1 (max)

        6 to 12.4 GHz: 1.35:1 (max)

        12.4 to 18 GHz: 1.45:1 (max)

Coolant Method: Dry, Convection Cooled

Impedance: 50 Ohms

Temperature: -65 to 125 °C (-85 to 257 °F)

Standard Attenuation Values: 3 dB

Dimensions: 4.75 Long x 3.00 SQ.

Weight: 1.66 lbs. Approx

Finish: Black Anodized Aluminum

Details

Datasheet
