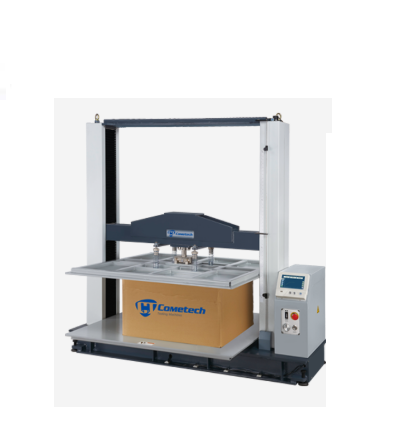

Cometech QC-121M2F Carton Compression tester

Model: QC-121M2F (A type)/ QC-121M2F (B type)/ QC-121M2F (C type)/ QC-121M2F (D type)

Test space: 100×100×90 cm(A type)/120×120×100 cm(B type)/100×100×90 cm(C type)/120×120×100 cm(D type)

Max.capacity: 2000 kg(A type)/2000 kg(B type)/5000 kg(C type)/5000 kg(D type)

Units exchange: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Stress: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force resolution: 31 bits

Force precision: 1/100,000

Stroke resolution: 0.0001mm

Test speed: Low speed mode: 0.0001 ~ 0.95mm/min

 High speed mode: 0.015 ~ 300mm/min

PC-port: TCP/IP

Data sample rate: 1200hz(Max.)

Hardware safety protection: upper limit, lower limit, emergency stop

Motor Type: Servo motor

Power: Single phase 200 ~ 240VAC・5A(A type)/Single phase 200 ~ 240VAC・5A(B type)/Single phase 200 ~ 240VAC・8A(type)/Single phase 200 ~ 240VAC・8A(D type)

Dimension: 159×100×170cm(A type)/179×120×176 cm(B  type)/159×100×170 cm(C type)/179×120×176 cm(D type)

Weight: approx. 800 kg(A type)/approx. 850 kg(B type)/approx. 900 kg(C type)/approx. 950 kg(D type)
