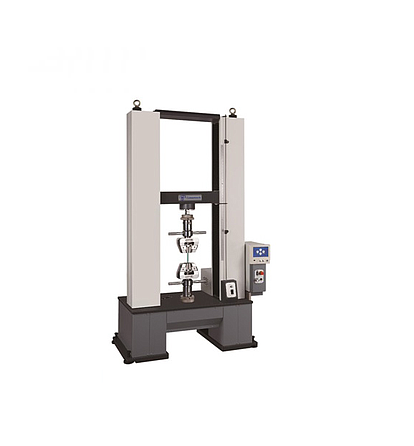

Cometech QC-500M1F COMPUTERIZED TENSILE TESTING MACHINE (500kN)

  • Manufacturer: Cometech
    Model: QC-500M1F
    Origin: Taiwan
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

Speed range: 0.2 ~ 330mm/min (adjustable)

Max. Capacity: 500 kN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution: 31 bits

Force Precision: 1/100,000

Test stroke(w/o grip): 1500 mm

Stroke resolution: 0.0001 mm

Space between columns: 550 mm(680mm, 800mm Optional)

PC-Port: RJ45(TCP/IP)(software optional)

Data sampling rate: Max.400Hz

Hardware safety protection: upper limit, lower limit, emergency stop button

Motor type: Servo Motor

Power Supply: 3 phase 200~240 VAC,70 A

Dimension of Machine: 145 x 85 x 295cm

Weight of Machine: 2350kg
