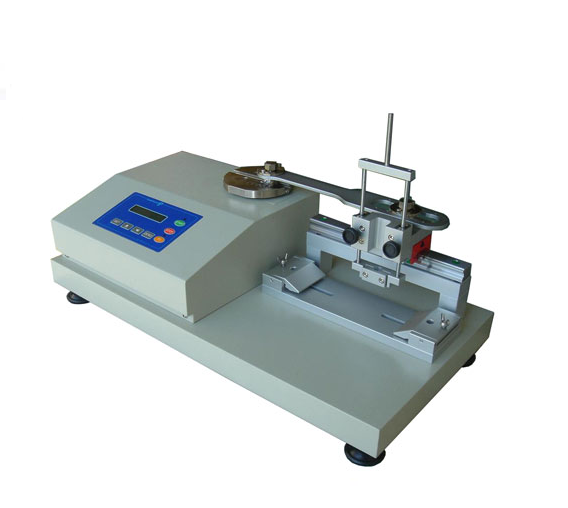

Cometech QC-621H Surface Hardness Abrasion Tester

  • Manufacturer: Cometech
    Model: QC-621H
    Origin: Taiwan
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

Testing distance: 10~100mm adjustable (eccentric wheel transmission)

Max test force: The max test force is 8 kgs when test stroke is under 50mm

Abrasion Head: a)Φ6.35mm sandpaper b)Φ16mmcotton c)Φ16mm  steel wool (optional)

Specimen size: Width is 20-200mm, Max thickness is 50mm( grip can be adjust according to different specimen.)

Control panel: Timer: 0~99,999,999 Auto stop when test complete

Test speed: 10~100 CPM

Power supply: 100V-240V

Dimension: 70×35×45 cm

Weight: 46kgs

Loading Weight: 25g, 50g, 100g, 200g, 300g, 500g, 1000g (the aliminum abrasion head is 200g)
