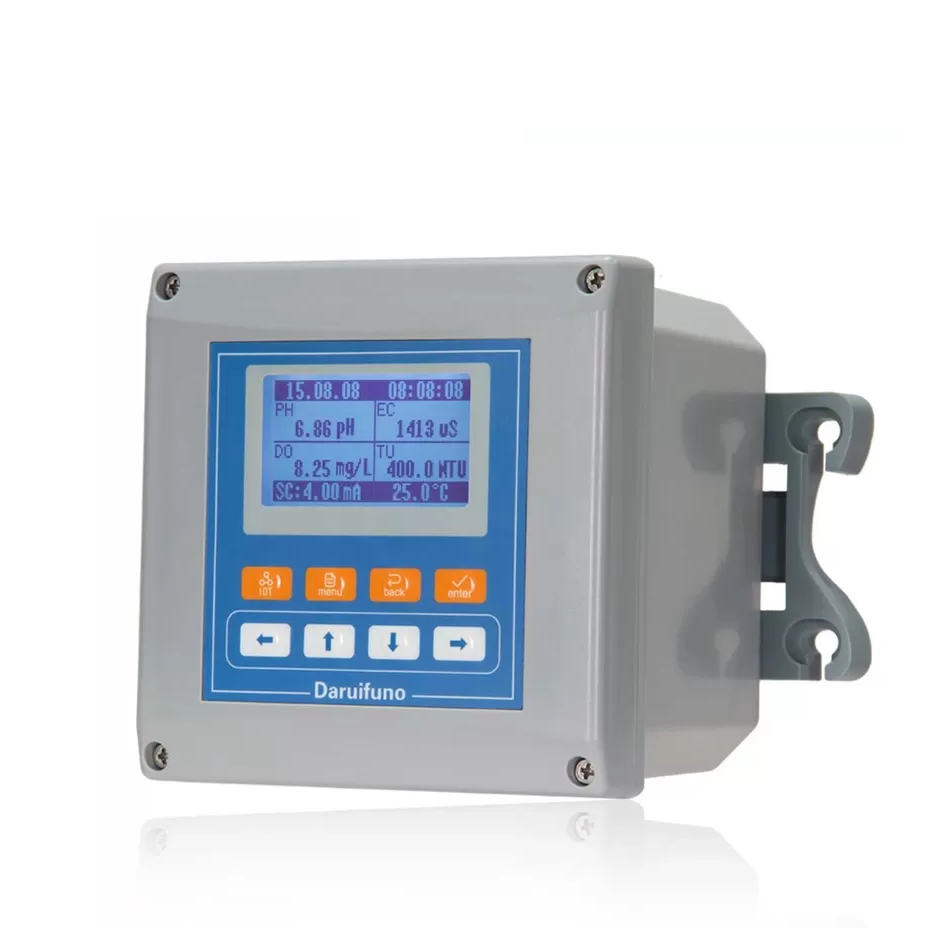

Daruifuno MCC100-A2 Water Quality Multi-parameter Analyzer (Max 2 sensor , PH,Temp, conductivity, dissolved oxygen, turbidity)

Software Version: Daruifuno multi-parameter analysis software V1.0

Detection Object: PH,Temp, conductivity, dissolved oxygen, turbidity

Communication Method: Two-wire RS485 interface communication protocol: MODBUS RTU

OTA: Optional

Screen: 128*64 graphic dot matrix LCD screen adjustable backlight mode; adjustable display rate

Configuration Information: Power failure protection, indefinite retention of parameters

Time/Data Logging: Accurate to the second, record 5000 historical data; Recording interval can be set between 1 and 999 minutes

Maintain Records: Last 100 times

Protection Grade: IP66

Operating Temperature: 0～60℃, RH<95%RH

Storage Temperature: -20～70℃,RH<55%RH

Instrument Shell: Shell material: reinforced ABS

Instrument Dimensions: 144*144*120mm(opening hole size 138*138mm)

Installation Method: Wall mount, pipe clamping, panel

Electrical Interface: Three M12*1.5 Gellen heads are reserved at the back, with a wire diameter of 3~6.5mm

Power: 100~240VAC,50/60Hz (option DC18-36V)

Power Consumption: <25W
