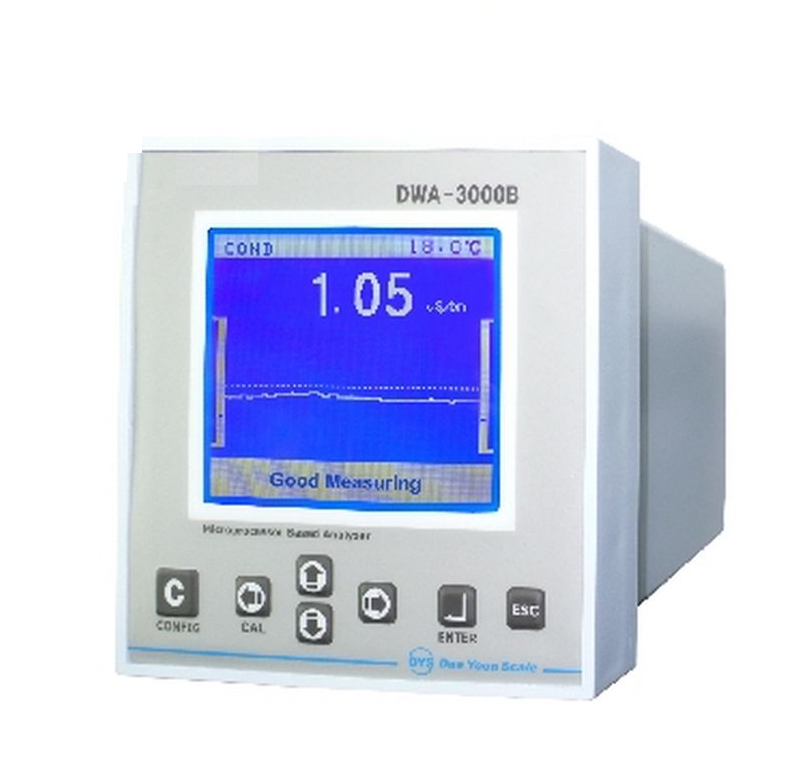

DYS DWA – 3000B-CD Analyzer and control of EC - 2 points SET

Function / Features

- Certificate : New Excellent Product (NeP)
- Certificate : Certificate of Patent
- Certificate : Certificate of CE
- English Display
- Real Time Trend Graph Function
- Relay Contact output - HH, L, L, LL & Cleaning Contact
- Simple Operation by 7 Keypad Button
- Large Size LCD Screen (160*128)
- Back-Light LCD
- Isolated(4~20, 0~20, 0~24 mA DC) Output Transmission
- RS-232(Std.), RS485(option) Communication
- Automatic Cleaning Control(Air jet, Water jet) Function
- Wall Mounting / 2B pipe Stanchion Mounting
- Microprocessor-based Digital Program Controller

Specifications

- Code No. : 413130001CD
- Model : DWA-3000A-CD
- Channel : Single channel
- Range : 0 ~ 2,000 uS/cm or user spec’.
- Resolution : 0.01
- Power : AC 110/220V, 50/60Hz, 3VA
- Accuracy : ± 1% of F.S
- Repetition & Reappearance : ± 1% of F.S
Function / Features

- Certificate : New Excellent Product (NeP)
- Certificate : Certificate of Patent
- Certificate : Certificate of CE
- English Display
- Real Time Trend Graph Function
- Relay Contact output (3 contacts)
High, Low Alarm & Cleaning Contact
- Simple Operation by 7 Keypad Button
- Large Size LCD Screen (160*128)
- Back-Light LCD
- Isolated(4~20, 0~20, 0~24 mA DC) Output Transmission
- RS-232 Communication
- Automatic Cleaning Control(Air jet, Water jet) Function
- panel mounting (DIN 144 size)
- Microprocessor-based Digital Program Controller

Specifications

- Code No. : 413130002CD
- Model : DWA-3000B-CD
- Channel : Single channel
- Range : 0 ~ 2,000 uS/cm or user spec’.
- Resolution : 0.01
- Power : AC 110/220V, 50/60Hz, 3VA
- Accuracy : ± 1% of F.S
- Repetition & Reappearance : ± 1% of F.S
- Response time : 30 sec(90% saturation)
- Analog output : 4~20mA DC(STD.)
- Digital output : RS-232C
- Relay output : High, Low & Cleaning Contact
- Display : Trend graph, measuring value, Temp
- Humidity : max. 90%(non-condensing)
- IP Rating : IP65
- Size : 155(W)x155(H)x184(D
- Installation : Panel mounting (DIN144 Size)



Details

OPTION:

EC ELECTRODE



PRICES (USD)

EC ONLINE POWER POLE FOR WATER AND PURE WATER, FAMILY WITH STAINLESS STEEL
Model C001
Manufacturer: DYS - Korea
- EC electrodes using appropriate online measurements in water and purified water.
- Measuring range: 0-20 μS / cm
- Temperature scale: 0 - 1000C
- Temperature Sensor: Pt1000 sensor
- Maximum pressure: 1.0 Mpa
- Body electrodes SUS316L stainless steel, cable length 5m
- Ren screw ½ "NPT

1

210

EC POWER POLE ONLINE MULTI-PURPOSE, WITH BODY STAINLESS STEEL
Model C01
Manufacturer: DYS - Korea
- Online multipurpose electrode EC
- Measuring range: 0-200 μS / cm
- Temperature scale: 0 - 1000C
- Temperature Sensor: Pt1000 sensor
- Maximum pressure: 1.0 Mpa
- Body electrodes SUS316L stainless steel, cable length 5m
- Ren screw ½ "NPT

1

210

EC POWER POLE ONLINE MULTI-PURPOSE, WITH BODY STAINLESS STEEL
Model C1
Manufacturer: DYS - Korea
- Online multipurpose electrode EC
- Measuring range: 0 to 2000 μS / cm
- Temperature scale: 0 - 1000C
- Temperature Sensor: Pt1000 sensor
- Maximum pressure: 1.0 Mpa
- Body electrodes SUS316L stainless steel, cable length 5m
- Ren screw ¾ "NPT

1

280
