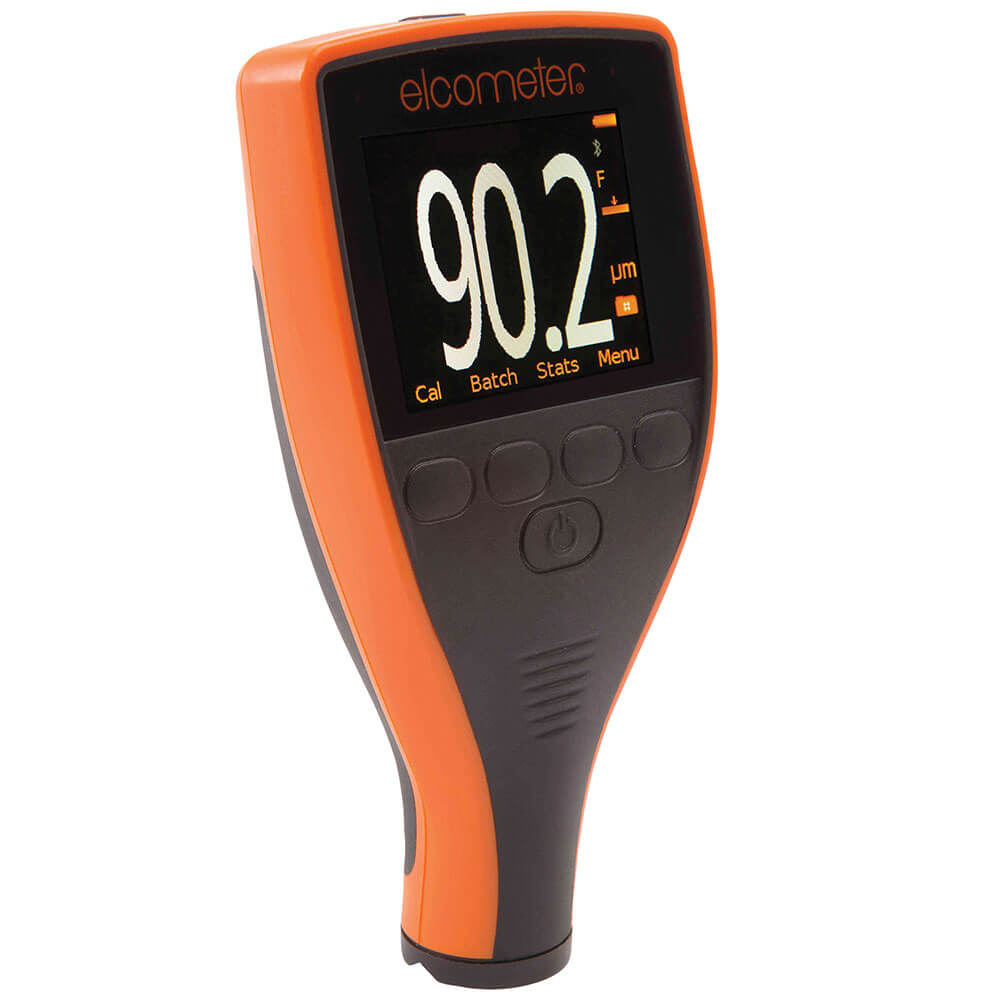

Elcometer A456CFNFBS coating thickness gauges

  • Manufacturer: ELCOMETER
    Model: A456CFNFBS
  • 512.04
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacture: Elcometer
Model: A456CFNFBS
Origin: UK
Warranty: 12 month

Dual FNF Separate
Calibration memory type; gauge (g) or gauge & batch (gb): g
Gauge memory: last 5
Data output: USB; to computer
Tough, impact, water & dust resistant; equivalent to IP64
Display information: 2.4 inch (6cm) QVGA colour TFT display, 320 x 240 pixels
Battery type: 2 x AA dry cell batteries, rechargeable batteries can also be used
Battery life: ~24 hours of continuous use at 1 reading per second5
Gauge dimensions (h x w x d): 141 x 73 x 37mm
Gauge weight: 161g including supplied batteries
Operating temperature: -10 to 50°C
Packing list:  Elcometer 456 gauge, calibration foils , protective case, 2 x AA batteries, operating instructions

Manual

Datasheet

The Elcometer 456 Coating Thickness Gauge sets new standards; providing reliable and accurate coating thickness measurements; helping you to become more efficient.

The Elcometer 456 dry film thickness gauge is available in three different models. Each coating thickness gauge provides the user with increasing functionality - from the entry level Elcometer 456 Model B, to the top of the range Elcometer 456 Model T.

Integral coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot™ internal probe provides greater stability during coating thickness measurement - allowing for consistent, repeatable and accurate dry film thickness results.

Elcometer 456 Coating Thickness Gauge

Technical Specification



Integral Model Options

Scale 1

Range: 0-1500μm (0-60mils)

Accuracy*: ±1-3% or ±2.5μm (±0.1mil)



Resolution: 0.1μm: 0-100μm; 1μm: 100-1500μm (0.01mil: 0-5mils; 0.1mil: 5-60mils)



Model B

Model S

Model T

Elcometer 456 Ferrous Integral

A456CFBI1

A456CFSI1

A456CFTI1

Elcometer 456 Non-Ferrous Integral

A456CNBI1

See separate gauges with

N2 PINIP™ Probe

See separate gauges with

N2 PINIP™ Probe

Elcometer 456 Dual FNF Integral

A456CFNFBI1

A456CFNFSI1

A456CFNFTI1











Scale 2

Range: 0-5mm (0-200mils)

Accuracy*: ±1-3% or ±20μm (±1.0mil)



Resolution: 1μm: 0-1mm; 10μm: 1-5mm (0.1mil: 0-50mils; 1mil: 50-200mils)

For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance



Model B

Model S

Model T

C



Elcometer 456 Ferrous Integral

A456CFBI2

See separate gauges with

F2 PINIP™ Probe

See separate gauges with

F2 PINIP™ Probe















Scale 3

Range: 0-13mm (0-500mils)

Accuracy*: ±1-3% or ±50μm (±2.0mils)





Resolution: 1μm: 0-2mm; 10μm: 2-13mm (0.1mil: 0-100mils; 1mil: 100-500mils)





Model B

Model S

Model T

C



Elcometer 456 Ferrous Integral

A456CFBI3

See separate gauges with

F3 PINIP™ Probe

See separate gauges with

F3 PINIP™ Probe















Separate Model Options













Model B

Model S

Model T

C



Elcometer 456 Ferrous Separate

A456CFBS

A456CFSS

A456CFTS



Elcometer 456 Non-Ferrous Separate

A456CNBS

A456CNSS

A456CNTS



Elcometer 456 Dual FNF Separate

A456CFNFBS

A456CFNFSS

A456CFNFTS



Probes are supplied separately







* Whichever is the greater
Certificate supplied as standard





Product Features

Standard

Optional



Model B
