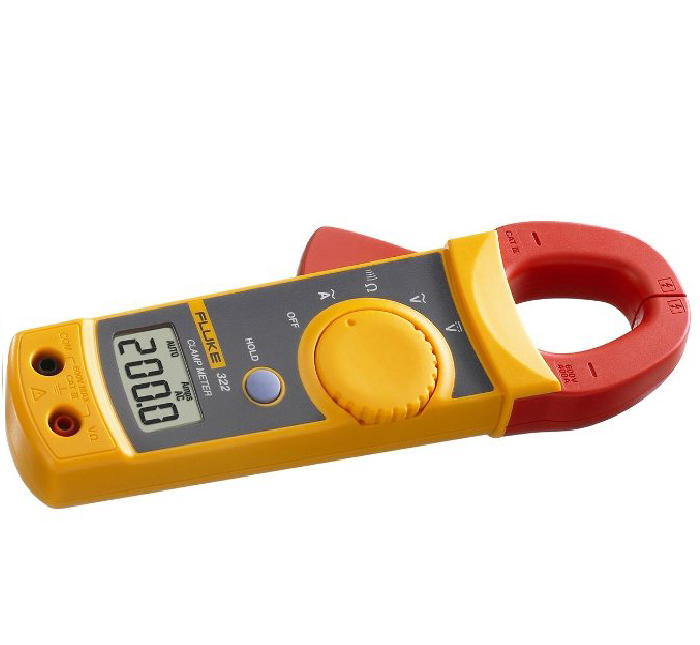

Fluke 322 Clamp Meter

Specifications

Voltage DC

Range:

 0 - 400 V (Fluke 322 only)

Resolution:

 0.1 V

Range:

 0 - 600 V (Fluke 322 only)

Resolution:

 1 V

Accuracy:

 1% ± 5 counts

Voltage AC

Range:

 0 - 400 V

Resolution:

 0.1 V

Range:

 0 - 600 V

Resolution:

 1 V

Accuracy:

 1.2% ± 5 counts (50 - 400 Hz)

AC Response:

 Averaging

Current AC

Range:

 0 - 400 A

Resolution:

 0.1 A

Range:

 0 - 40 A (Fluke 322 only)

Resolution:

 0.01 A

Accuracy:

 1.8% ± 5 counts (50 - 60 Hz)

Accuracy:

 3.0% ± 5 counts (60 - 400 Hz)

AC Response:

 Averaging

Resistance

Range:

 0 - 400 Ω

Resolution:

 0.1 Ω

Accuracy:

 1% ± 5 counts

Continuity



 <= 30 Ω

Environmental Specifications

Operating Temperature



 -10°C to +50°C

Storage Temperature



 -30 ºC to +60 ºC

Operating Altitude



 2,000 meters

Temperature De-rating



 Add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC

Mechanical & General Specifications

Size



 190 x 63 x 35 mm

Weight



 230 g

Warranty



 Two years

Battery Life



 100 hours typical (2 AAA carbon zinc)

Jaw Opening



 25 mm

All models include:

  • (2) AAA Alkaline batteries
  • Instruction card
  • Safety information sheet
  • Soft carrying case
  • Test leads

Discontined
