Fluke-574-CF Precision Infrared Thermometer

Manufacturer: FLUKE
Model: 574-CF
Contact
- Request a Quotation
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

Specifications
Manufacturer Info

Technical Specifications

Temperature range

	-30 to 900°C
	(-25 to 1600 °F)

Display Resolution

	0.1°C of reading up to 900°C
	0.2°F of reading up to 999.8°F

D:S (Distance to spot size)

	60:1 Standard focus
	50:1 Close focus

Minimum measurement diameter

	19mm (0.76 in) Standard focus
	6mm (0.24 in) Close focus

Laser sighting

Three point coaxial laser

Emissivity

Digitally adjustable from 0.10 to 1.0 by 0.01

Display Accuracy [Assumes ambient operating temperature of 23°C(73°F) to 25°C(77°F)]

	±0.75% of reading
	±1% of reading or ±0.75°C (±1.5°F), whichever is greater

Response time

250 mSec (95% of reading)

Repeatability

±0.5% of reading or ±1°C (±2°F), whichever is greater

Spectral response

8 µm to 14 µm

Laser Sighting

Laser turns off above ambient temperature of 40°C (104°F)

Laser Power

Class 2(II) operation; Output <1mW, wavelength 630-670 nm

Relative humidity

10% to 90% RH non-condensing, at <30°C (86°F)

Tripod mount

¼ in. 20 UNC threading

Power

2 AA batteries/ AC adapter

Battery life (alkaline)

13 hours with laser and backlight on 50%

Display hold

7 seconds

LCD backlit

Warranty

2 years

Operating temperature

	0°C to 50°C
	32°F to 120°F

Storage temperature

	-20°C to 50°C
	-25°F to 120°F

MAX, MIN temperatures

DIF, AVG temperatures

Audible and visible alarms

High and low

Bar graph display

Up to 100 points data logging

Data only

Data graphing and storage software (Windows compatible)

Data only

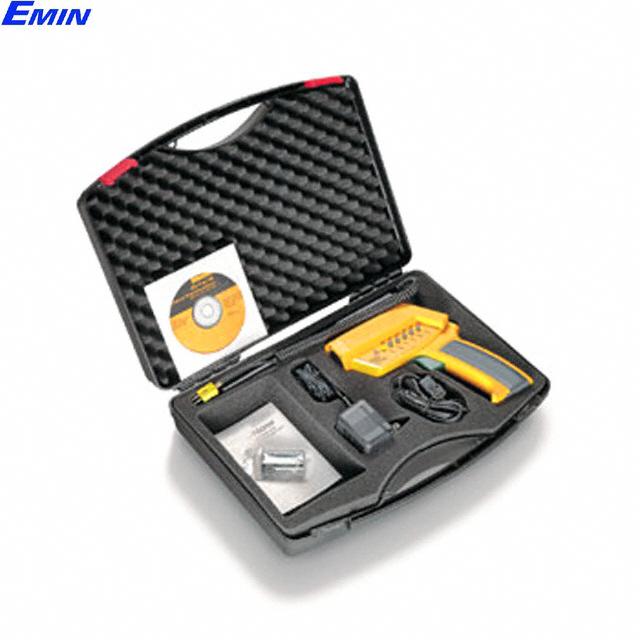

Includes:

Standard Fluke 574 accessories
Close Focus Option available for specialized applications, such as electrical components, features minimum measurement diameter 6mm (0.24") and Distance to Spot (D:S): 50:1.

Manufacturer: Fluke - USA
