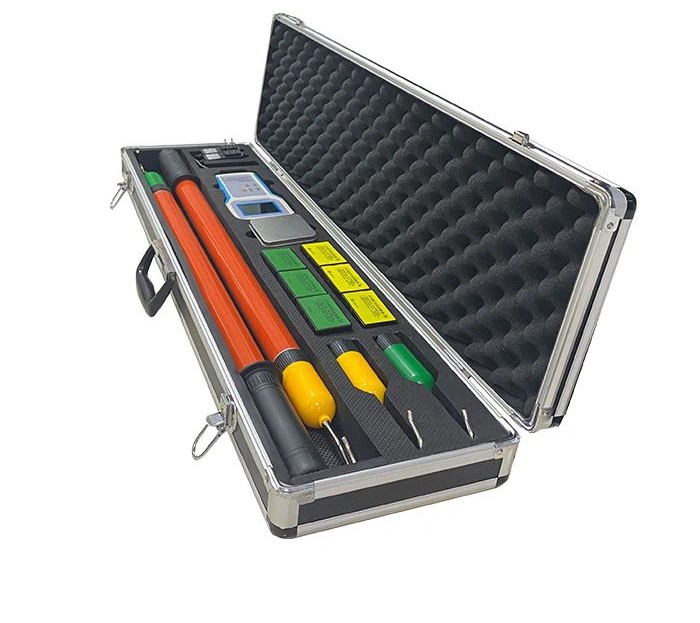

Huazheng HZ-8600E Central cabinet wireless unclear phase meter

1、Phase difference accuracy：Error≤5°。

2、Frequency accuracy：±0.1HZ

3、Able to measure the voltage across the range of 5V ~ 220kV。

4、The maximum transmission line-of-sight distance between the receiving host and the transmitter is about 100 meters，The maximum transmission line-of-sight

distance from the collector is about 60 meters。

5、Human voice prompts measurement results and operation steps。

6 、 The 3.2-inch color screen simultaneously displays the phase difference,

frequency, vector diagram and in-phase and out-of-phase results of each line，Display the battery level of itself and the collector。

7、Automatic shutdown without operation for 1 hour。

8、Collector, transmitter and receiving host all have built-in rechargeable lithiumbatteries，Configure 5V charger。

9、Host built-in 18650 lithium battery,The battery capacity is 2500mAH。Collector

and transmitter built-in 10440 lithium battery，The battery capacity is 450mAH。

10、Leakage current <10uA during high voltage measurement。

11、Collector and transmitter working power consumption <0.1W，Receiving host

working power consumption <0.3W。

12、Working environment：-35℃--- +45℃ Humidity≤95%RH。13、Total Weight:About 8KG。

14、Instrument package size：Length 89cm*Width 26cm*Height11cm。
