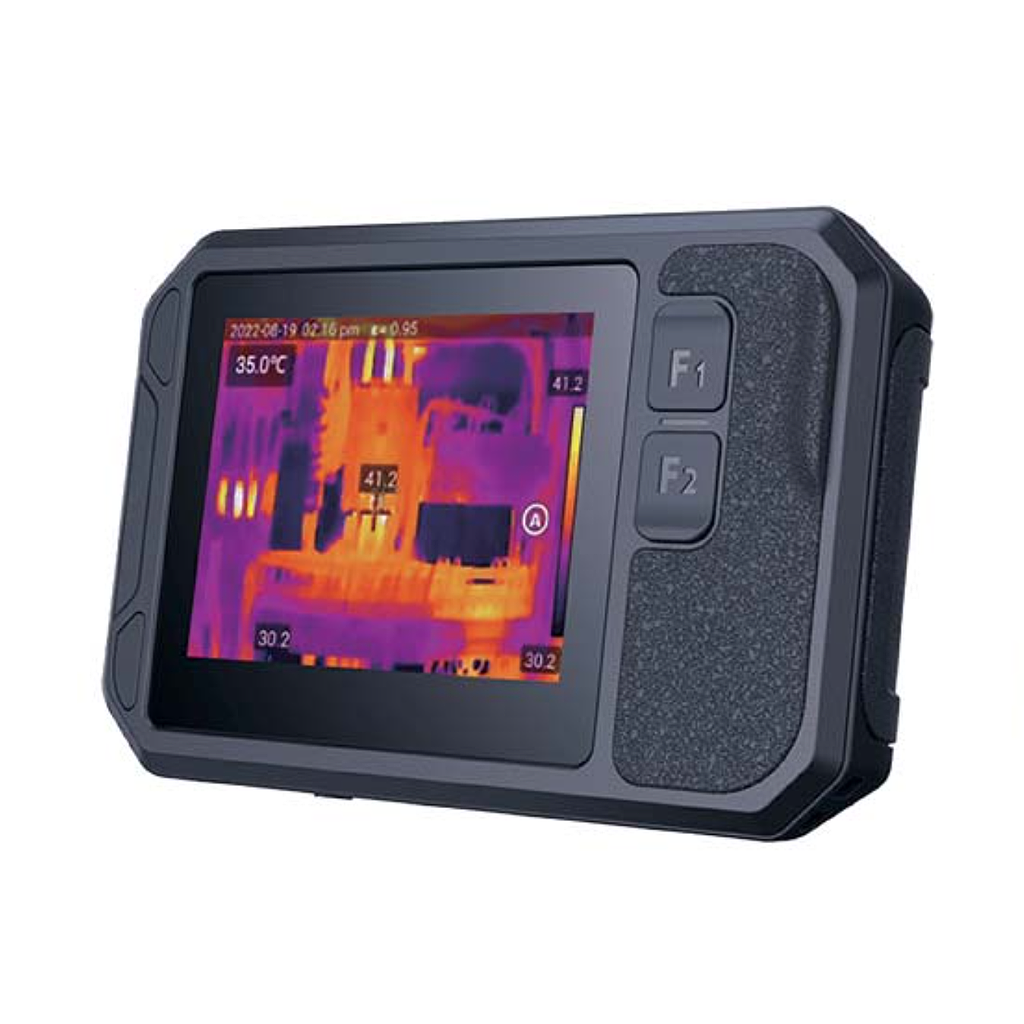

INSIZE 0232-PC550 Pocket-sized Thermal Camera (-20°C~150°C, 100°C~550°C)

Imaging and optics

Detector type: unrefrigerated vanadium oxide/7.5µm~14µm

Infrared resolution: 256x192@12µm

Thermal sensitivity/NETD: ≤45mK

Infrared frame rate: 25Hz/9Hz

Focal length: 3.2mm

Field of view: 56°x48°

Spatial resolution (IFOV): 3.75mrad

Minimum object distance: 0.3m

Distance to spot size (D:S): 266:1

Focusing mode: focus-free

Digital zoom: 1.1x~8x

Laser ranging: ≤8m

Measurement and analysis

Measurement range: support auto-switching: -20°C~150°C, 100°C~550°C

Measurement accuracy: ±2°C or ±2%, whichever is greater

Analyzed target: spot x 2 (include center spot), area x 3

Tracking/alarm: full-screen maximum/minimum temperature tracking; the maximum or minimum temperature tracking of analyzed target; full-screen temperature threshold alarm (image and flash)

Temperature measuring parameter: emissivity, reflected temperature, target distance

Other: intelligently calculate the area

Image display

Display screen: 3.5" LCD

Digital camera: 5MP

Image mode: IR, VIS, MIF, PIP

Image adjustment: automatic, semi-automatic, manual

Color palettes: white hot, black hot, iron red, hot iron, rainbow, arctic

Function

Recording function: photo

Cloud service: available

Other: customized physical button x 2

Storage and transmission

Storage media: local storage (16GB)

Image storage: JPG with temperature information

External interface: TYPE-C

WIFI: can be connected to the mobile terminal for image transmission

Power system

Battery type: rechargeable lithium-ion battery, working time ≥4 hours

Charging mode: TYPE-C charging; PC/portable charger, capable of charging while using

Charging time: 90% of full charge in 2.5 hours

Environmental parameter

Operating temperature: -10°C~50°C

Storage temperature: -40°C~70°C

Protection: IP54, 1m drop test

Certification: CE, FCC, ROHS

Physical parameter

Hardware: illuminator, laser (indicator, ranging)

Dimension: 138x89x35mm

Weight: 296g
