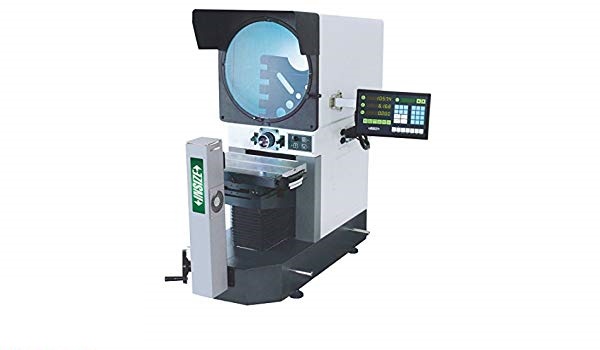

Insize ISP-A7000E Horizontal Profile Projector

  • Manufacturer: INSIZE
    Model: ISP-A7000E
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • 428,197,730 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

Edge detector (included)

Programming for batch measurements

Power supply: 110V,50/60Hz


Magnification: 10X

View field: Ø40mm

Worrking distance: 103.9mm

Magnification accuracy: +/-0.08%

Projector screen:

Diameter: Ø400mm

Rotation range: 0°~360°,resolution:1" or 0.01°

Reference line: Cross-hairs


Metal stage size: 450x200mm

Turning range: +/-15°

X-Z stage travel:range:250x150mm, resolution: 0.5µm, accuracy: (4+L/25)µm;L(mm)

Y (focus) travel range: 100mm

Max. load capacity: 50Kg

Output: RS232C,USB

Demension(LxWxH): 1215x646x1210mm

Weight: 240kg

Standard delivery: Main unit,Switch foot, Anti-dust cover, Overlay chart clip(4pc).
