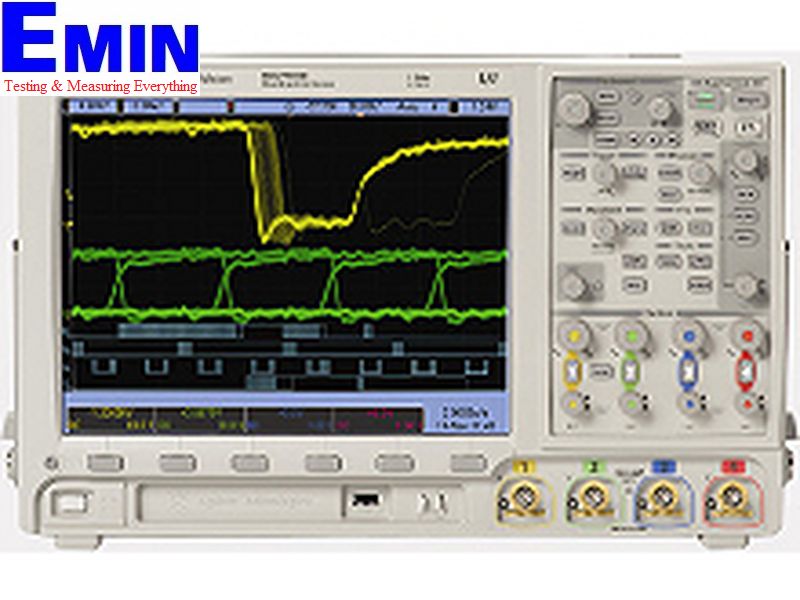

Agilent DSO7104B InfiniiVision Oscilloscope (1 GHz, 4 GSa/s sample rate, 4 Channels)

  • Manufacturer: KEYSIGHT
    Model: DSO7104B
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Bandwidth: 1 GHz

Channels: 4 Analog

Maximum sample rate: 4 GSa/s sample rate

Memory: 8 Mpts

Display: 12.1” XGA LCD display,

Maximum input voltage: 400 Vpk

Standard ports: USB 2.0 high-speed device, two USB 1.1 host ports, 10/100BaseT LAN, XGA video output

Dimensions: 45.4 cm x 29.8 cm x 22 cm)

Weight: Net: 5.9 kg (13 lbs) Shipping: 9.3 kg (20.5 lbs)

Manufacturer: Agilent-USA

View Data Sheet

Option

N2732A: Rack Mount Kit for the 7000 Series Oscilloscopes

N2733A: Soft carrying case for 7000 Series oscilloscopes

N2737A: DSO to MSO upgrade

N2873A: Passive Probe, 10:1, 500 MHz, 1.3 m

N2874A: Passive Probe, 10:1, 1.5 GHz, 1.3 m

N2876A: Passive Probe, 100:1, 1.5 GHz, 1.3 m

N5406A: FPGA dynamic probe option for Xilinx with InfiniiVision Series MSOs

N5423A: I²C and SPI Serial Data Decode Option for InfiniiVision 6000 and 7000B Series Oscilloscopes

N5424A: CAN/LIN Option InfiniiVision 6000 & 7000B Series Oscilloscopes (Option AMS)

N5432C: FlexRay Triggering and Decode

N5454A: Segmented memory acquisition for InfiniiVision Series oscilloscopes

N5455A: (option LMT) Mask/Waveform Limit Testing For Agilent InfiniiVision 6000 & 7000B Oscilloscopes

N5457A: RS-232/UART Serial Triggering and Decode Option

N5468A: I²S triggering and Decode Option for InfiniiVision Series Oscilloscopes

N5469A: MIL-STD 1553 Triggering and Decode

U1881A: Power measurement application for InfiniiVision oscilloscopes

GPIB to LAN adapter for Agilent’s 7000, 9000A and 9000 H-Series oscilloscopes
