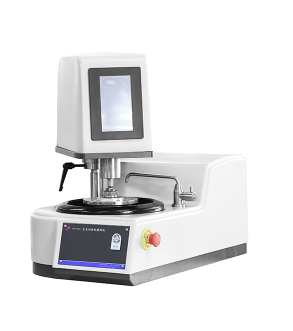

LABTT LAP-2000X Fully automatic metallographic grinding and polishing machine

station: Double disk

Working disk diameter: Standard 254mm with magnetic transfer disk system

Working disk speed: 100-1000 RPM steering positive and negative rotation can be switched

Grinding head speed: 0-100r/min

Sample preparation time range: 0-9999s

Loading range: 30-200N

Loading mode: Center load

Sample gripper: Standard 30mm six (optional 40-50mm four, the rest can be customized)

The power supply: AC220V, 50 hz

The motor power: 0.75 Kw

Overall dimension (length * width * height): 760 x 730 x 700

The weight of the: 120kg
