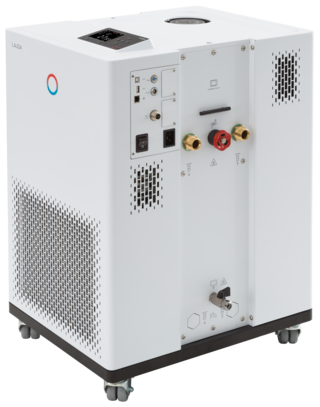

Lauda IN 230 TW Integral Process Thermostat (-30 ~ 120 °C, 3.6L ~ 8.7L)

Working temperature range: -30 ... 120°C

Ambient temperature range: 5 ... 40 °C

Temperature stability: 0.05 ± K

Heater power max.: 2.7 kW

Max. power consumption: 3.7 kW

Current consumption: 16 A

Max. discharge pressure: 3.5 bar

Max. pump flow pressure: 40 L/min

In / Outlet connection thread (outside): G 3/4"

Inlet/outlet hose size: 3/4″

Min. filling volume: 3.6 L

Max. filling volume: 8.7 L

Water cooling connection thread (inside): 3/4 ″

Recommended cooling water temperature: 15 °C

Cooling water flow rate: 3 L/min

Pressure difference cooling water min.: 0.8 bar

Maximal pressure cooling water: 10 bar

Dimensions (WxDxH): 430 x 550 x 760 mm

Weight: 85 kg

Noise level: 60 dB(A)

Power supply: 230 V; 50 Hz
