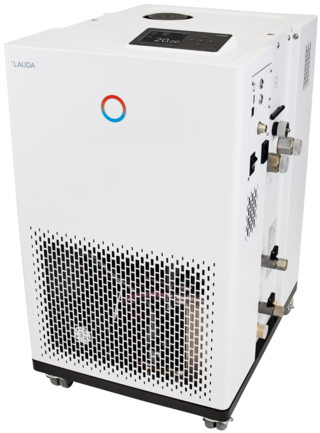

Lauda IN 250 XTW Integral Process Thermostat (-45 ~ 220 °C, 2.5L ~ 8.7L)
Manufacturer: Lauda Model: IN 250 XTW P/N: L002674 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Working temperature range: -45 ... 220 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Heater power max.: 3.5 kW
Max. power consumption: 3.7 kW
Current consumption: 16 A
Max. discharge pressure: 3.1 bar
Max. pump flow pressure: 65 L/min
In / Outlet connection thread (outside): M30 x 1.5
Inlet/outlet hose size: 3/4″
Min. filling volume: 2.5 L
Max. filling volume: 8.7 L
Water cooling connection thread (inside): 3/4 ″
Recommended cooling water temperature: 15 °C
Cooling water flow rate: 4.2 L/min
Pressure difference cooling water min.: 0.8 bar
Maximal pressure cooling water: 10 bar
Dimensions (WxDxH): 430 x 550 x 760 mm
Weight: 13.5 kg
Noise level: 57 dB(A)
Power supply: 230 V; 50 Hz
