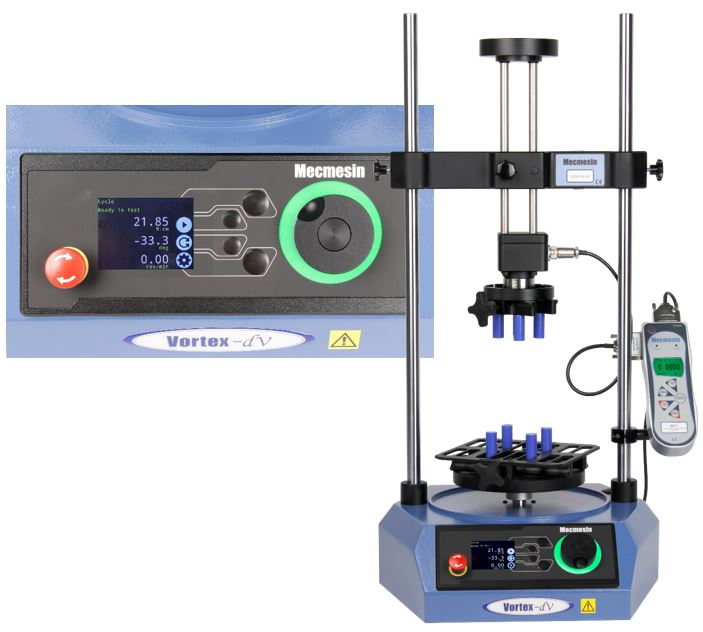

Mecmesin Vortex-dV 6 Digital Motorised Torque Testing System (0-6.0 N.m/0-60 kgf.cm/0-52 lbf.in; 0.1 rev/min ~ 30 rev/min)

Measurement range: 0-6.0 N.m/0-60 kgf.cm/0-52 lbf.in

Dimensions

Maximum travel of adjustable transducer carriage: 182 mm (7.2″)

Maximum headroom: 505 mm (19.9″) [448 mm (17.6″)]*

Width between columns: 280 mm (11.02″)

Weight: 19.5 kg (48 lb)

Power requirements

Voltage: 230 V AC 50 Hz or 110 V AC 60 Hz

Max power: 100W

Torque measurement (AFTI)

Torque accuracy: 0.5% of full scale

Torque units: mN.m, N.m, kgf.cm, lbf.in, ozf.in (as per AFTI)

Speed

Speed range: 0.1 rev/min to 30 rev/min (clockwise and anticlockwise)

Speed accuracy: ±1% of indicated speed

Speed resolution: 0.01 rev/min, (0.1°/s)

Displacement

Maximum displacement: 8000 revs

Displacement accuracy: 0.2° per 36,000°

Displacement resolution:0.1° (0.001 rev)
