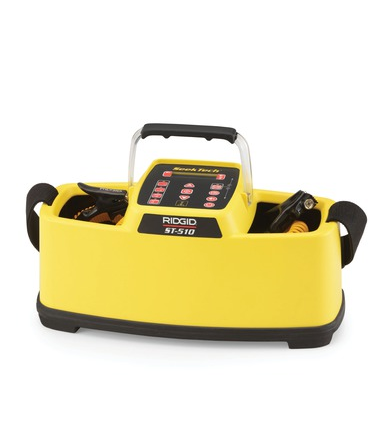

Ridgid ST-510 Line Transmitter (128 Hz, 1 kHz, 8 kHz, 33 kHz and 93 kHz)

Power Source................8 Alkaline or rechargeable batteries.(D-Cells) High Voltage Indicator

Features: AUTO Shut Off, Battery Saver Mode, AutoBack Light

Weight ...........................4.75 lbs (2.15 kg) w/o batteries, 7.5 lbs (3.4 kg) w/batteries

Dimensions:

Length .........................7.0" (17.8 cm)

Width ...........................15" (38.1 cm)

Height..........................6.5" (16.5 cm)

Cable Length...............48' Extended (14m); 46" contracted (1.1m)

Output Power ................Nominal 10 watts max. 1 watt maximum if frequency is above 45kHz. Maximum output voltage 30V RMS; ~ 48V peak

Power Settings: .............4 mA, 15 mA, 50 mA, 150 mA, 600 mA

Default Settings:............60 Hz Mode, 2 Hr. Shutoff, 30V-RMS Maximum, SeekTech frequencies loaded

FCC Limits.....................47 CFR 15.213 says that from 9kHz up to (but not including) 45kHz, peak output power shall not exceed 10 W. From 45kHz to 490kHz, it must not exceed 1W.


Standard Equipment

• SeekTech ST-510 Transmitter

• Direct connect leads and clips

• Operator’s Manual

• 8 D-cell batteries (Alkaline)

• Grounding Stake
