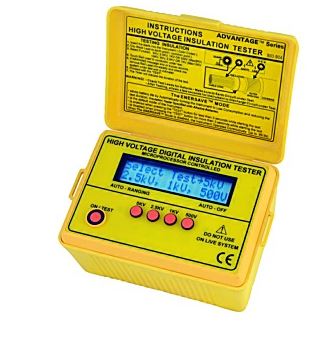

SEW 2803 IN Insulation Tester (5KV,250GΩ)

  • Manufacturer: SEW
    Model: 2803IN
    Origin: Taiwan
  • 330.00
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: SEW
Made in Taiwan
Test voltage (DC V): 0.5kV  / 1kV/ 2.5kV/ 5kV
Measuring ranges: 0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ
Accuracy
0-50GΩ : ±3% rdg
50-250GΩ : ±5% rdg
Dimensions: 170(L) × 120(W) × 95(D)mm
Weight: 930g
Power source:1.5V(AA) × 8

FEATURESa



  FEATURES
● Microprocessor-controlled.
● Four insulation test voltages.
● Insulation resistance; auto ranging on all ranges.
● Bargraph indicates test voltage; rise and decay can be observed
    during tests.
● Visual and audible warning if external voltage is present.
● EnerSave™ feature to extend battery life.
● 2 Lines × 16 characters large LCD.
● Low battery consumption.
● Low battery indicator.
● Overload protection.
● Auto-off.
● Show test time duration (up to 99.9s) for easy comparison.
● EEPROM calibration.
● Built-in carry case and test leads in separate pouch.

  SPECIFICATIONS


 Test voltage (DC V)  0.5kV  /    1kV     /    2.5kV    /    5kV
 Measuring ranges
 (Auto-Ranges)
 0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ
 Accuracy  0-50GΩ : ±3% rdg
 50-250GΩ : ±5% rdg
 Dimensions  170(L) × 120(W) × 95(D)mm
 Weight
 (battery included)
 Approx. 930g
 Power source  1.5V(AA) × 8
 Safety standard  EN 61010-1
 EN 61326-1

 Microprocessor controlled with advanced safety features.
 Displays external voltage warning if present.
 Battery life extended by EnerSave (tm) feature.
 Continous battery monitoring.
 Auto-ranging/auto-off.
 Built-in carrying case, test leads in separate pouch.
 Real-time bargraph display of test voltage and voltage decay during discharge.
 Audible and visual message displayed if external voltage is present.
 Large LCD.Dispaly can be customized for special orders.
 Show test time duration (up to 99.9s) for easy comparison.
 EEPROM calibration.
 EN 61010-1, IEC 1010-1 CAT III
