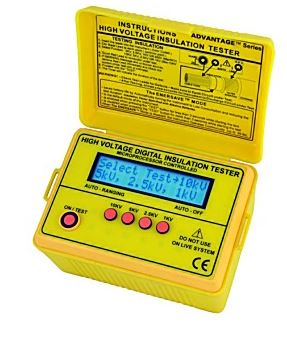

SEW 2804 IN Insulation Tester ((10KV, 500GΩ)

  • Manufacturer: SEW
    Model: 2804IN
    Origin: Taiwan
  • 408.00
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment


Manufacturer: SEW
Made in Taiwan
Test voltage (DC V): 1kV/ 2.5kV/ 5kV/ 10kV
Measuring ranges: 0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ
Accuracy:
0-50GΩ : ±3% rdg
50-500GΩ : ±5% rdg
Dimensions: 170(L) × 120(W) × 95(D)mm
Weight: 1030g
Power source:1.5V(AA) × 8

  FEATURES
● Microprocessor-controlled.
● Four insulation test voltages.
● Insulation resistance; auto ranging on all ranges.
● Bargraph indicates test voltage; rise and decay can be observed
   during tests.
● Visual and audible warning if external voltage is present.
● EnerSave™ feature to extend battery life.
● 2 Lines × 16 characters large LCD.
● Low battery consumption.
● Low battery indicator.
● Overload protection.
● Auto-off.
● Show test time duration (up to 99.9s) for easy comparison.
● EEPROM calibration.
● Built-in carry case and test leads in separate pouch.

  SPECIFICATIONS






 Test voltage (DC V)  1kV    /   2.5kV     /     5kV     /    10kV
 Measuring ranges
 (Auto-Ranges)
 0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ
 Accuracy  0-50GΩ : ±3% rdg
 50-500GΩ : ±5% rdg
 Dimensions  170(L) × 120(W) × 95(D)mm
 Weight
 (battery included)
 Approx. 1030g
 Power source  1.5V(AA) × 8
 Safety standard  EN 61010-1
 EN 61326-1
