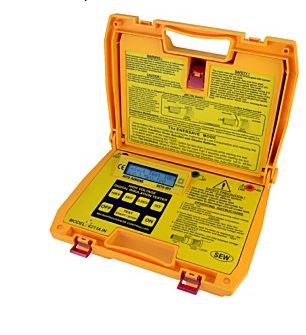

SEW 6211A IN Insulation Tester (10KV, 0-500GΩ)

  • Manufacturer: SEW
    Model: 6211AIN
  • 521.00
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment


Manufacturer: SEW
Made in Taiwan
Test voltage (DC V): 1kV/ 2.5kV/ 5kV/ 10kV
Measuring ranges: 0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ
Accuracy:±3% rdg
Dimensions: 330(L) × 260(W) × 160(D)mm
Weight: 3600g
Power source:1.5V(AA) × 8

  FEATURES
● Microprocessor-controlled.
● Four insulation test voltages.
● Insulation resistance; auto ranging on all ranges.
● Bargraph indicates test voltage; rise and decay can be observed during tests.
● Visual and audible warning if external voltage is present.
● Fully protected: crow bar.
● Carry case.
● EEPROM calibration.

  SPECIFICATIONS


 Test voltage (DC V)  1kV    /    2.5kV    /      5kV   /     10kV
 Measuring ranges
 (Auto-Ranges)
 0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ
 Accuracy  ±3% rdg
 Output power limit  50uA to 100uA (1W)
 Live warning  > 500V AC
 Operation
 temperature
 0°C to 40°C
 Operation-humidity  85% Max. relative humidity
 Dimensions  330(L) × 260(W) × 160(D)mm
 Weight
 (battery included)
 Approx. 3600g
 Power source  1.5V “C”× 8 Alkaline batteries
 Safety standard  EN 61010-1
 EN 61326-1
