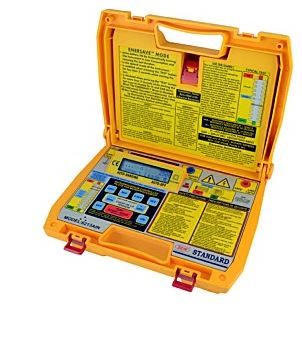

SEW 6213A IN Insulation Tester (10KV, 500GΩ)

Manufacturer: SEW
Model: 6213A IN
Contact
- Request a Quotation
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

Specifications
Manufacturer Info

Test voltage (DC V): From 500Vdc to 10kVdc Adjustable in 500V steps
Preset buttons: 1kV / 2.5kV / 5kV / 10kV
Measuring ranges: 800kΩ-500GΩ (auto-ranging)
Accuracy:± 5% rdg ± 5 dgt
Dimensions: 330(L) × 260(W) × 160(D)mm
Weight: 3600g
Power source:1.5V(AA) × 8

Details

FEATURES

● Microprocessor-controlled.
● 2 ×16 characters; large intelligent LCD module.
● 20 Insulation test voltages 500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV,
3.5kV, 4kV, 4.5kV, 5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV, 8.5kV,
9kV, 9.5kV, 10kV.
● Ener-Save™ feature to extend battery life.
● Bar-graph indicates test voltage; rise and decay can be observed.
● Visual and audible warning if external voltage is present (>500Vac or Vdc.)
● Insulation resistance; auto-ranging on all ranges.
● Overload protection.
● Low battery indicator (read time battery voltage measurement).
● Measures insulation time duration of the test.
● Low battery consumption.
● Better than 10% accuracy on all ranges.
● Auto-off.
● Calculates Dielectric Absorption Ratio (DAR) automatically.
● Calculates Polarization Index (PI) automatically.

SPECIFICATIONS

Test voltage	From 500Vdc to 10kVdc Adjustable in 500V steps
Preset buttons	1kV / 2.5kV / 5kV / 10kV
Measuring ranges	800kΩ-500GΩ (auto-ranging)
Accuracy	± 5% ± 2 digits
Output power limit	1W
Voltage regulation	Selected voltage +20%-5% of nominal value unless current limited. Meaning that if output current is too high, the voltage will be lowered automatically.
Dimensions	330(L) × 260(W) × 160(D)mm
Weight (battery included)	Approx. 3600g
Power source	1.5V “C”× 8 Alkaline batteries
Safety standard	EN 61010-1 CAT III 300V EN 61326-1
