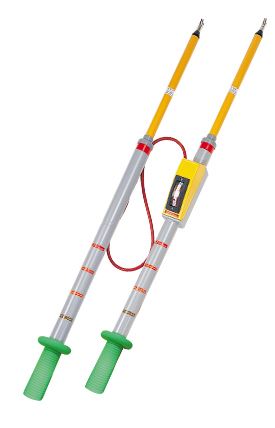

SEW PC11K High Voltage Multifunction Phasing Sticks (11 kV)

  • Manufacturer: SEW
    Model: PC11K
    • Request a Quotation Request a Quotation
  • 20,656,500 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

System Voltage: 11 kV (max 15kV)
Full Scale Voltage: 12kV
Total Resistance: 6.78MΩ
Response time: <1SEC
Neon Threshold: 1,2kV
Neon lit Fully @: 1,5kV
Length of Handle: 775mm
Length Front End: 400mm
Total Length: 1,175m
Total Weight: 2,1Kg

Details
  FEATURES
● No user’s assembled parts.
● Dual color-coded scale (%, Vac).
● Neon indicator when >1200Vac.
● Lightweight, robust & compact.
● Carry case included.
● Compare between phases.
● Measure and test phase to earth.
● High quality fiberglass wound rod.
● Self powered operation. No battery required.
● DC version available.
● Measure phase to phase.
● Hi immunity to interference fields.
● Suitable for indoor and outdoor use.
● Current is limited to ±1 milli-ampere.
● Grounded or ungrounded systems.
● Meets IEC 61481 (excludes PC44K).

  SPECIFICATIONS
Range of Models

● Models are available to cover system voltages from 1kV to 44kV @50 or 60Hz.
● Contact the factory for information on models suitable for other Voltages.
● All models have Neon and Analogue panel Meter Indicators.
● The following models are available as standard Instruments:





Model

System voltage

Full scale voltage

Maximum voltage

PC7K

6.6kV

8kV

9kV

PC11K

11kV

12kV

15kV

PC22K

22kV

24kV

30kV

PC33K

33kV

36kV

40kV

PC44K

44kV

48kV

55kV
