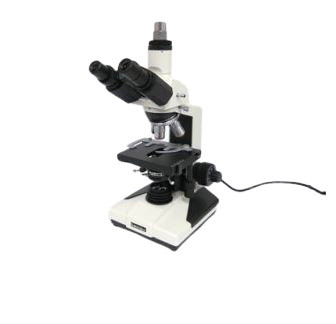

Trinocular biological microscope with camera-attachable JIS scope Shodensha BC-23

  • Manufacturer: SHODENSHA
    Model: BC-23
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267


The third scope is JIS standard with 23.2mm inner diameter and can be attached with general microscope cameras.

(C-mount adaptor (optional part) can be used to attach a C-mount camera)

Reverse revolver

Wide Field eyepiece, Achromatic objective lens

Wide mechanical stage (125mmx135 movable range 35mmx75mm)

*General Specification

Magnification 40x、100x、400x、1000x

Eyepiece Lens WF10x

Objective Lens 4x、10x、40x、100x

Focus Adjustment Coaxial Coarse/Fine Focus System

Interpupillary Distance 53-75mm

Lens Barrel Trinocular

Wide mechanical stage 125mmx135mm、Movable range 35mmx75mm

Lighting Halogen lamp 6V 20W(Continuous light adjustment)

Power Supply AC100V 50/60Hz

Dimension 280x180x450mm (JIS barrel included)

Weight 6.2kg

Accompanying parts : Filter (Blue, ) Immersion oil, Halogen bulb(spare)、Fuse(spare)、Vinyl dust cover Plastic case
