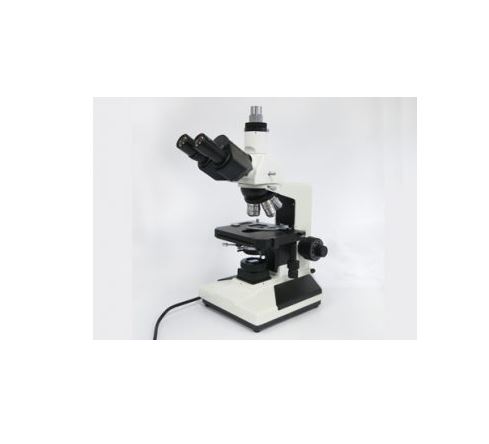

Trinocular biological microscope with camera-attachable JIS scope Shodensha BC-31

  • Manufacturer: SHODENSHA
    Model: BC-31
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267


The third scope is JIS standard with 23.2mm inner diameter and can be attached with general microscope cameras.

(C-mount adaptor (optional part) can be used to attach a C-mount camera)

・5 barrel reverse revolver

・Wide Field eyepiece

・High quality plan achromatic objective lens

・Wide mechanical stage (140mmx160mm、movable range 50mmx75mm)

*General Specification

Magnification 40x、100x、400x、1000x

Eyepiece Lens WF10x

Objective Lens 4x、10x、40x、100x

Focus Adjustment Coaxial Coarse/Fine Focus System

Interpupillary Distance 53-75mm

Lens Barrel Trinocular

Wide mechanical stage 140mmX160mm、 Movable range 50mmX75mm

Lighting Halogen lamp 6V 20W(Continuous light adjustment)

Dimension 320x200x470mm(w/ JIS barrel)

Weight 7.0kg

Accompanying parts : Filter (Blue, ) Immersion oil, Halogen bulb(spare)、Fuse(spare)、Plastic Protective cover
