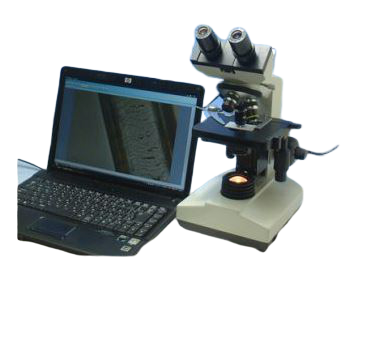

Digital Biological Microscope with internal Camera Shodensha GR-D8T2

 Specification:


Digital biological microscope is a combination system of a biological microscope and a 1.3mega pixel camera.

It is possible to directly observe the preparation through the microscope’s eyepiece lens or real-time display, observation, and take the images on the computer screen via USB by using the digital biological microscope GR-D8T2.

By using the Observation of sump method can observe bacterium of blood, and plaques etc.,And can use to observe the cuticle of hairs by the expand fields.


Include mechanical stage

Basic measurement such as the distance between 2 points can be done by using the measurement software.


*General Specification

Magnification 40x、100x、400x、1000x

Eyepiece Lens WF10x

Objective Lens 4x、10x、40x、100x

Focus Adjustment Coaxial Coarse/Fine Focus System

Interpupillary Distance 55-75mm

Lens Barrel Binocular

Inclination angle 45°

Stage Mechanical stage: 140x140mm・ Movable range: 75x50mm

Lighting Halogen lamp 6V 20W(Continuous light adjustment)

Power Supply AC100-240V 50/60Hz

Dimension 251x197x380mm

Weight 5.5kg

Supported Operating System WindowsXP/Vista/7/8

*Camera

Number of Pixels 1.3 megapixel

Resolution 1280x1024

Connection USB2.0
