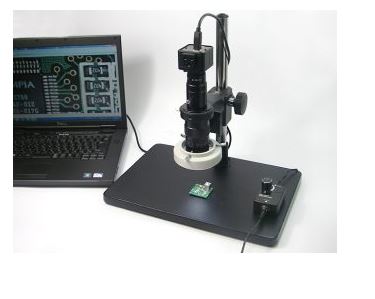

Shodensha TG140CCD Microscope USB 1.4 Megapixel With CCD sensor

  • Manufacturer: SHODENSHA
    Model: TG140CCD
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267


*General Specification

Magnification 20x-120x

Field-of-view 17.5mmx13.2mm (at 20x), 3.0mmx2.2mm (at 120x)

Stand Dimensions 388mmx268mm x350(H)mm

Supported Operating System Windows XP, Vista, 7, 8, 10

Memory Bigger than 512MB


Image Sensor 1/2”CMOS

Number of Pixels 1.4 Megapixel

Resolution 1360x1024

Frame Rate 1360x1024 15fps

Connection USB2.0

Shutter Global Shutter

CPU Requirement Above Intel Pentium 4


Optical Magnification x0.75-x4.5 (6x)

Focus Distance W.D. 90mm

Lens Holder Diameter φ50mm

Mount C Mount


1.4 megapixel USB Camera

56 LED Ring Light

Zoom Lens



*Optional parts for convenience

0.5X Auxiliary lens TG-0.5

LED Angle LED-A2
