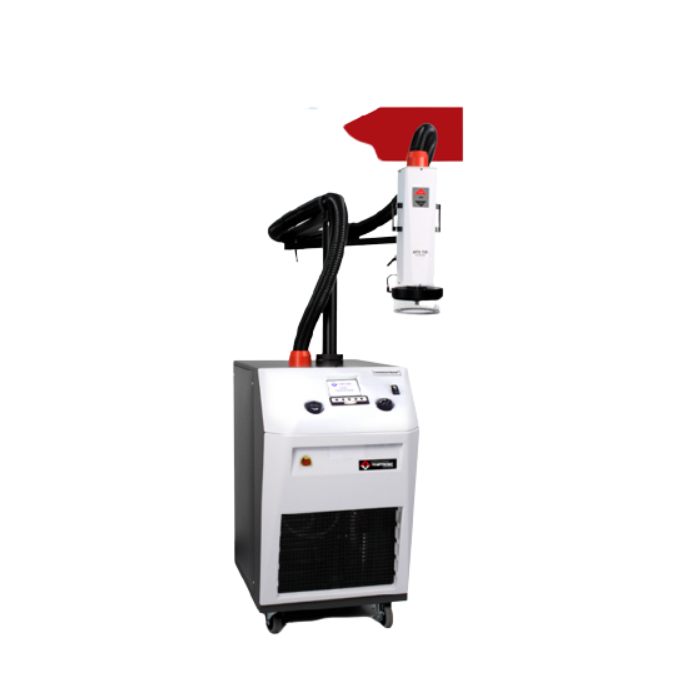

Thermonics ATS-810-WM Thermostream (-80 ~ + 225°C)

Description

The ATS Series temperature forcing systems are designed for the demanding 24/7 production environment. They provide fast, precise, and robust production-level testing and conditioning of electronic components, boards and modules. Capable of ultra-low temperatures without the use of Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2).

Performance

Temperature Range: -80 ~ +225°C, No LN2 or LCO2 Required

Transition Rates

Heating: -55 to +125°C, <10 seconds

Cooling: +125 to -55°C, <10 seconds

System Airflow Output: 4 to 18scfm (1.9 to 8.5 l/s) Continuous

Temperature control

Temperature Display & Resolution: +/- 0.1°C

Temperature Accuracy: 1.0°C (when calibrated against NIST standard)

DUT Temperature Control: Proprietary control algorithm enables DUT temperature to be directly controlled

DUT Sensor Ports: Thermocouples (type T & K)

Power: 200 - 250 VAC (230V nominal), 60Hz, 30 amp, 1phase

Cooling Water

3.5 gpm (13.25 lpm)

20°C inlet water temperature

20-30 psi (1.38 to 2.07 bar) pressure differential for water inlet and outlet.

Operating environment

Operating Temperature: +20°C ~ +28°C; +23°C nominal

Humidity: 0 ~ 60%; 45% nominal

Noise Level: <65dBA
