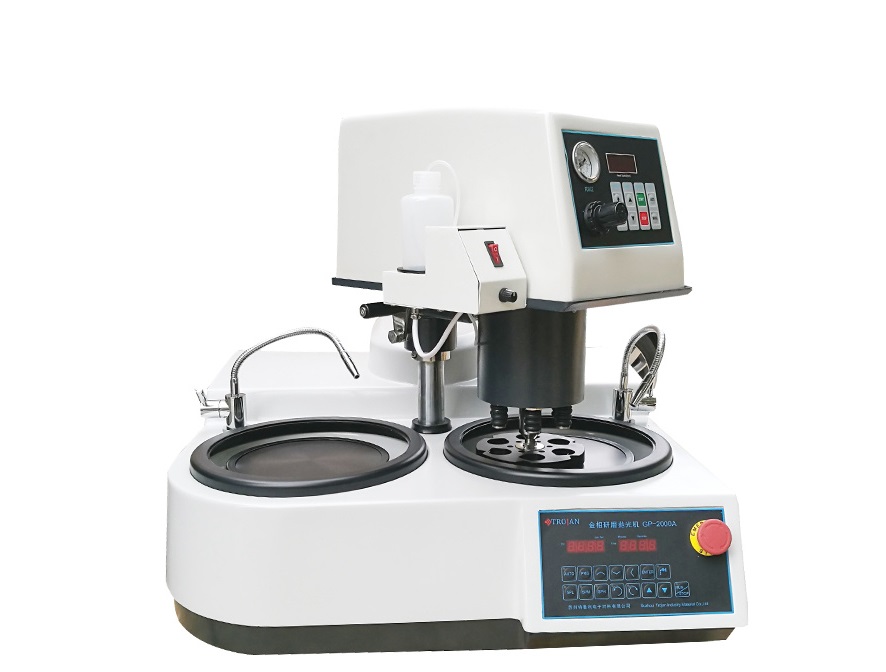

EBP GP-2000A 7’’ 자동 시료 분쇄 및 연마기 (터치 스크린)

Working disc:  Standard φ254mm with magnetic disc

(option:φ230mm, φ203mm)

Speed of working disc: 100-1000 r/min

Support clockwise / anticlockwise direction rotating

Three level constant speeds: V1=300r/min, V2=500r/min, V3=800r/min

Grinding head speed: 30-200r/min

Sample holder: Standard φ30mm 6 pcs of samples( option:φ40-φ50mm 3 pcs of samples, other size can be customized)

Automatic mode: Can be programmed eight speed, running time and grinding wheel steering switch

Working air source pressure range: Not less 0.8MPa

Samples pressure range: 0.3-0.4MPa(not less than 0.3MPa)

Power supply: AC220V, 50/60Hz

Motor power: 0.75Kw

Dimension: 700 x 730 x 350

Weight: 74kg

Detail

Datasheet
