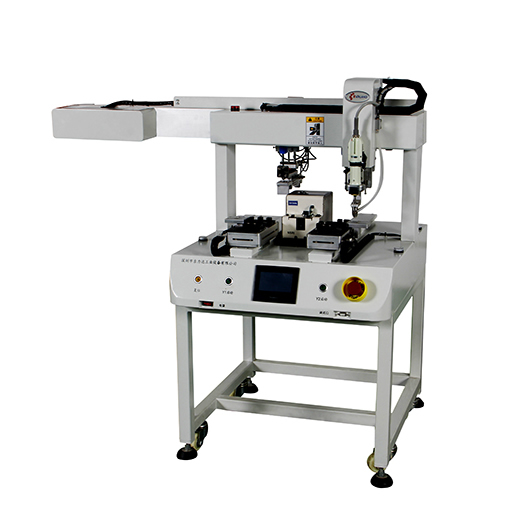

Garland ATS-510II 자동 스크류 드라이버 기계

Number of operators: 1 person

model: Countertop type (rack option)

Dimensions: L*W*H——700*1005*670(mm)

weight: 115KG

Operating area: Protective

Reclaiming method: Vacuum suction

Number of electric batches: 2PCS

Number of feeders: 2PCS

Number of work stations: 2PCS

Fixture: custom made

Gas source: 0.4-0.8MPa, oil-free, dry

power supply: 220V 50HZ

power: 320W

Applicable screw specifications: Below M3

effectiveness: 1.0s-1.2s/piece

NPL ratio: 1‰ or less (in number of screws)

speed: X, Y, Z-800, 800, 800mm/s

Precision: +/-0.02mm

Applicable product size: L*W*H--120*200*20(mm)

Alarm item: Sliding teeth, leaking, floating height (optional)

Electric batch torque: Adjustable

Operation interface: touch screen

Coordinate storage: 60

Number of locks: 24

control unit: 4+1 axis motion controller

power: Stepper motor / servo motor

Transmission method: Precision timing belt / roller screw

Operating mode: Unmanned automatic, front/front, front/rear arm unloading

Model switching time: Within 15 minutes

Data communication: USB port export (optional)

annex: Coordinate adjustment handle


- This machine is a countertop type, compact and compact.

The performance of the machine is similar to that of other series of machines in our company.

Applicable to screws below M3, there is no strict requirement on the tooth type and screw length to diameter ratio.

The working mode is single player mode and unmanned mode, and you can choose freely according to your needs.

Equipped with a blanking arm for high-volume applications.


-Efficient: 1.0s-1.2s/piece

-can completely replace the manual lock screw station,

-cost - effective,


-can store a variety of products, screw coordinates are

-stable and reliable

-Easy to learn and use
