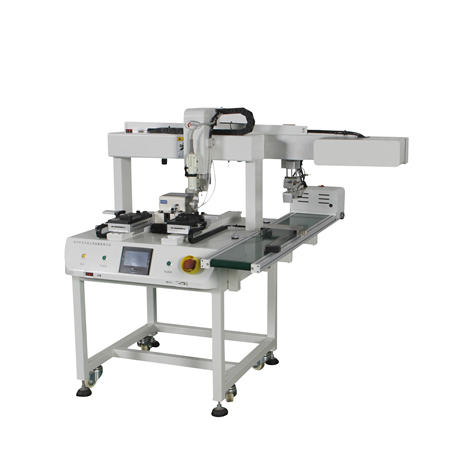

Garland ATS-520II 자동 스크류 드라이버 기계

Number of operators: none

Model: Countertop

Dimensions: L*W*H——970*1100*1180(mm)

Weight: 125KG

Operating area: Protective

Reclaiming method: Vacuum suction

Number of electric batches: 1PCS

Number of feeders: 1PCS

Number of work stations: 2PCS

Fixture: custom made

Gas source: 0.4-0.8MPa, oil-free, dry

Power supply: 220V 50HZ

Power: 320W

Applicable screw specifications: Below M3

effectiveness: 1.0s-1.2s/piece

NPL ratio: 1‰ or less (in number of screws)

speed: X, Y, Z-800, 800, 800mm/s

Precision: +/-0.02mm

Applicable product size: L*W*H--120*200*20(mm)

Alarm item: Sliding teeth, leaking, floating height (optional)

Electric batch torque: Adjustable

Operation interface: touch screen

Coordinate storage: 60

Number of locks: 24

Control unit: 4+1 axis motion controller

Power: Stepper motor / servo motor

Transmission method: Precision timing belt / roller screw

Operating mode: Front/front, front/back

Model switching time: Within 20 minutes

Data communication: USB port export (optional)

Annex: Coordinate adjustment handle

Detail

-The arm is automatically loaded/unloaded, and the operation is completely unmanned. High efficiency, saving manpower,

the machine is a countertop design with a simple rack, easy to move and debug, easy to learn and use.


-Compact and

-single-lock Z-axis, double working platform with

-high efficiency, high stability, high cost performance,

-versatility,

-can store a variety of products, screw coordinates,

-automatic loading and unloading function

-Easy to learn and use
