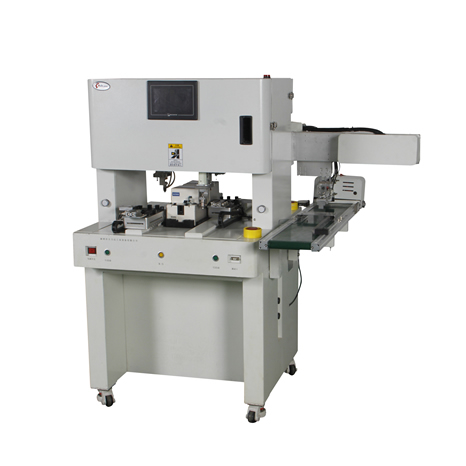

Garland ATS-620II 자동 스크류 드라이버

Number of operators: 1 person

Model: Floor-standing integrated

Dimensions: L*W*H——1265*805*1330(mm)

Weight: 250KG

Operating area: Protective

Reclaiming method: Vacuum suction

Number of electric batches: 2PCS

Number of feeders: 2PCS

Number of work stations: 2PCS

Fixture: custom made

Gas source: 0.4-0.8MPa, oil-free, dry

Power supply: 220V 50HZ

Power: 750W

Applicable screw specifications: Below M3

Effectiveness: Average 0.6s-0.8s/piece

NPL ratio: 1‰ or less (in number of screws)

Speed: X, Y, Z-800, 800, 800mm/s

Precision: +/-0.02mm

Applicable product size: L*W*H--120*200*20(mm)

Alarm item: Sliding teeth, leaking, floating height (optional)

Electric batch torque: Adjustable

Operation interface: touch screen

Coordinate storage: 60

Number of locks: 24

Control unit: 4+4 axis motion controller

Power: Stepper motor / servo motor

Transmission method: Precision timing belt / roller screw

Operating mode: Unmanned automatic, front/front, front/rear arm unloading

Model switching time: Within 20 minutes

Data communication: USB port export (optional)

annex: Coordinate adjustment handle


-The double-locking auxiliary shaft and the double working platform automatically open/unload the mechanical arm, and the operation is completely unmanned.

Suitable for high production capacity and one product,

there are two different specifications of screw production requirements.

The machine is an integrated design, easy to move and debug, easy to learn and use.


-Suitable for a product with two different specifications of screw

-double lock Z-axis, double working platform

-high efficiency, high stability, high cost performance,


-can store a variety of products, screw coordinates,

-automatic loading and unloading, control unmanned

-Easy to learn and use
