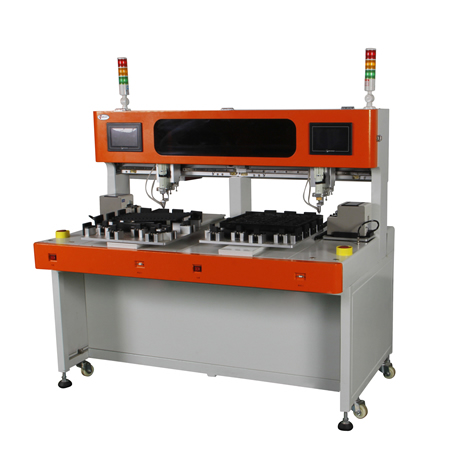

Garland ATS-800II 자동 스크류 드라이버 (LED)

Number of operators: 1 person

Model: Floor-standing integrated

Dimensions: L*W*H——780*670*1300(mm)

Weight: 150KG

Operating area: closed

Reclaiming method: Vacuum suction

Number of electric batches: 2PCS

Number of feeders: 2PCS

Number of work stations: 2PCS

Fixture: custom made

Gas source: 0.4-0.8MPa, oil-free, dry

Power supply: 220V 50HZ

Power: 350W

Applicable screw specifications: Below M3

Effectiveness: 1.0-1.2s/piece (depending on product and screw)

NPL ratio: 1‰ or less

Speed: X, Y, Z-800, 800, 800mm/s

Precision: +/-0.02mm

Applicable product size: L*W*H--120*200*12(mm)

Alarm item: Sliding teeth, leaking, unlocked

Electric batch torque: Adjustable

Operation interface: touch screen

Coordinate storage: 60

Number of locks: 290

Control unit: 4+4 axis motion controller

Power: Stepper motor / servo motor

Transmission method: Precision timing belt / roller screw

Operating mode: Front/front take, front/back

Model switching time: Within 30 minutes (take 100 pieces of screws as an example)

Data communication: USB port export (optional)

Annex: Coordinate adjustment handle


- This machine is the best-selling model of our company. In addition to excellent lock quality,

high speed and other features, the machine is designed for floor-standing integration, the structure is very firm,

the machine shakes very little during operation, the mechanical transmission part is completely separated from the electrical control part,

which is convenient for machine maintenance and maintenance.



-can completely replace the manual lock screw.

-High speed, stable and

-can store a variety of products. Screw coordinate

-structure is firm and long life.

-Easy to learn and use
