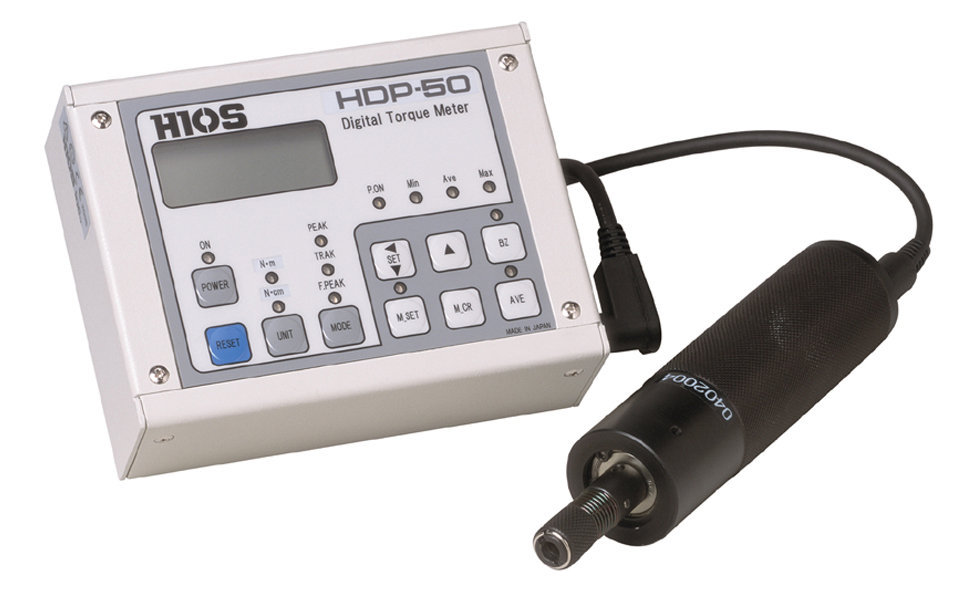

HIOS HDP-50 토크 미터

Peak mesuring range:    (N・m)     0.15-5

                                       (lbf・in)    15-500

Accuracy: Within ±0.5% (F.S.)

Measuring models: TRACK, PEAK, FIRST PEAK

External Dimensions(mm):

+ Display unit: 125 ×95.6 ×42 (H)

+ Detector: 160(L)×φ34.5

Weight(g):

+ Torque display: 0.78 kg

+ Detector: 0.25 kg

Detector: Bit socket H5 or 1/4HEX

Detector cord:  1.7 m (P/N: DPC-0506)

Charging time: 1.2 V NiMH x 5 cells 1,000 mA (within 6 hours)

Continuous operating time one full charge: 8 hours

Battery life: About 300 charges

Exclusive battery charger: Input:AC 100-240V (50 / 60Hz)

                                          Output:DC 7.3-8V 0.5 A

Detail

Manual


Feature

Use for measuring loosened torque of tightened screws or additional tightening torque.

● Measured data can be imported to a computer.

● Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).

● With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).

● New product, HP-1 is ideal for measuring 10N・cm or smaller torque.

● Torque for both clockwise or counterclockwise can be measured.

● As a standard specificataon, data output and analogue output are available.

● We offer calibration and maintenance services.

● “Inspection Report” is attached to all the Torque Meters.
