- Temperature Compensation Range:
0.1-4.99 m/s; 5.00-9.99 m/s; 10.0-24.9 m/s; 25.0-50.0 m/s
5~40°C: ±0.25 m/s; ±0.50 m/s; ±1.25 m/s; ±2.50 m/s
40~80°C: ±0.35 m/s; ±0.70 m/s; ±1.75 m/s; ±3.50 m/s
- Selectable Output Option: (Set via onboard DIPswitch) Current output: DC 4~20mA (Max. load resistance: 250Ω); Voltage output: DC 0~5V
- Selectable Range Option: (Rotary Switch selectable) 0~2, 0~5, 0~10, 0~25, or 0~50 m/s
- Power Supply: DC 12~24V
- Power Consumption (Reference Value):
Approx. 2.0W (Under the following conditions - power supply: 12V, air velocity: approx.
10m/s, using a unit with a display with probe model 0965-03.)
Power consumption rate is subject to change according to conditions such as air velocity, probe type and use of display.
- Connection Wire Size: 0.5 ~ 1.5 mm2
-Operating Temperature Range: 5 ~ 40°C
-Storage Temperature Range: -10 ~ 50°C
-Dimensions: Approx. 128(W)×78(D)×30(H) mm
-Weight: Approx. 320g (11oz.)
-Standard Accessory: Operation Manual : 1, Main Unit Case: 1
-Optional Accessory: Probe Cable (10m, 20m, 30m), Display Unit (Supplied with a case with a display window
and 2 installation screws.), Dedicated AC Adapter (DC12V)

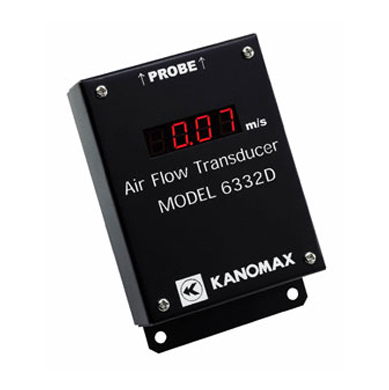

Airflow transducers are designed for fixed installation
Use on your production line quality control system
Monitor facility exhaust ventilation system.
Transducers feature 0 to 5 VDC or 4 to 20 mA analog output so you can send your data to other instruments such as data loggers, alarms, or controllers.
Selectable Output (Output can be set to either voltage (0 to 5V) or current (4 to 20mA))
Quality inspection of factory inspection line
Evaluation of thermal measures for PCBs
Air volume monitoring of local ventilation system
24-hour monitoring of in-house ventilation
