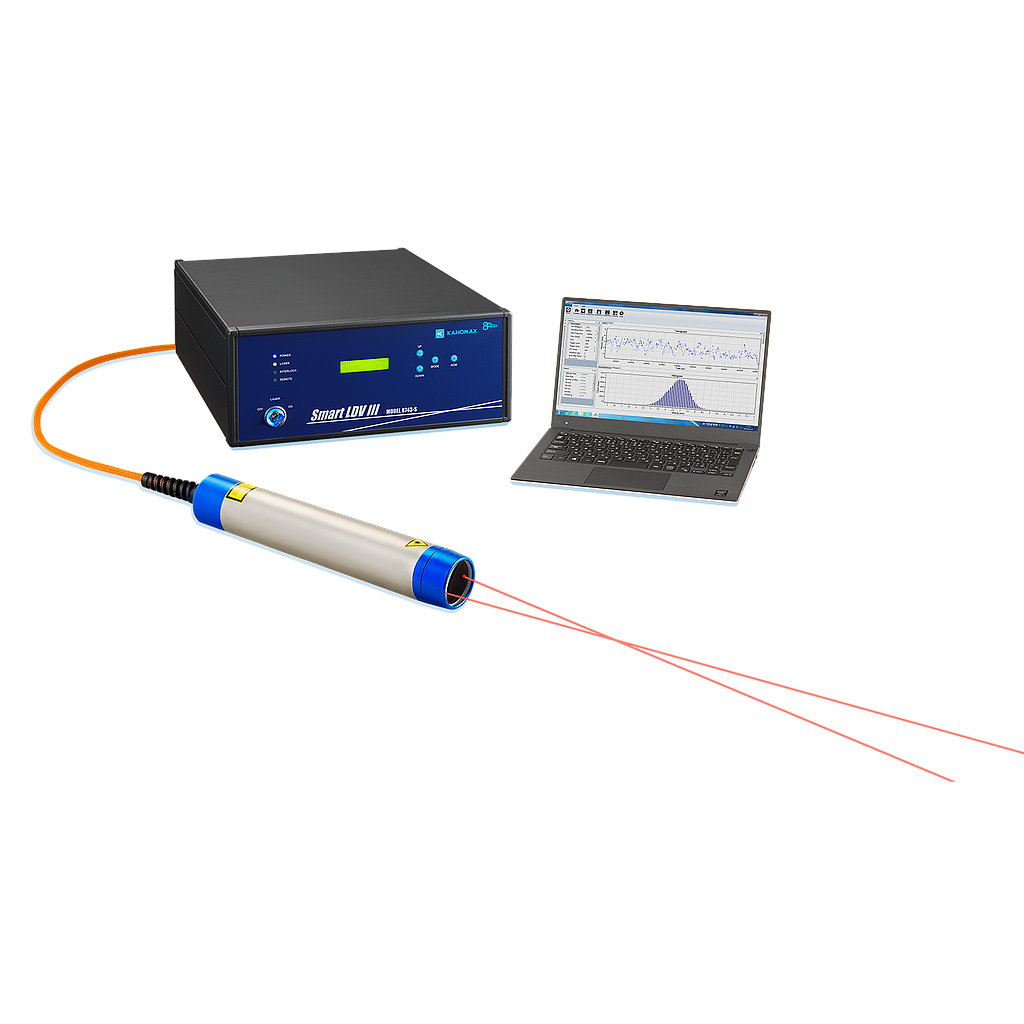

Kanomax 8743-S LDV III 진동 측정 장치 (-40~ 400 m/s)

  • 생산업체:KANOMAX
    Model: 8743-S
    출처: Japan
    보증: 12 Month
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 바로 구매하기
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Manufacturer: Kanomax

Model: 8743-S

Origin: Japan

Warranty: 12 months


- Main Unit Specifications:

Velocity Range: -40 to 400 m/s

Laser Source: Laser Diode: λ=660nm, 60mW

Focal Distance: 150, 200, 250, 300, 350, 400 mm

Focal Point Size: 0.13 mm x 1.3 mm (f=200mm)

Probe Size: 61 mm (Dimension) x 345 mm (length)

Shift Frequency: 0.01 to 10 MHz

- Signal Processor Specifications:

Signal Processing System: 8 bits FFT (512, 256, 128 points)

Frequency Band: 1 kHz to 40 MHz (8 ranges)

Max Data Rate: 60,000 speed data/sec*

Validation: Burst Spectrum ratio

Interface: USB 3.0

- Software:

Max. number of data: 100,000

Real time monitor: Burst waveformBurst spectrumVelocity histogram

Analysis function: Mean flow velocity, Turbulent intensity, Skewness factor, Flatness factor, Velocity histogram, Time-series display

Data output: CSV format

Supported Operating System:  Windows 7/8/10(64 bit only) Japanese/English


Details

- Features:

Enhanced receiving sensitivity enabling high data-rate measurement

Up to 60,000 velocity data/sec.

High-speed data transfer by USB3.0

Probe designed as all-in-one, no alignment necessary

- Applications:

Aerodynamic and hydraulic property measurement

Measurement requiring high time-resolution

Comparison with CFD

PIV accuracy tests

Datasheet
