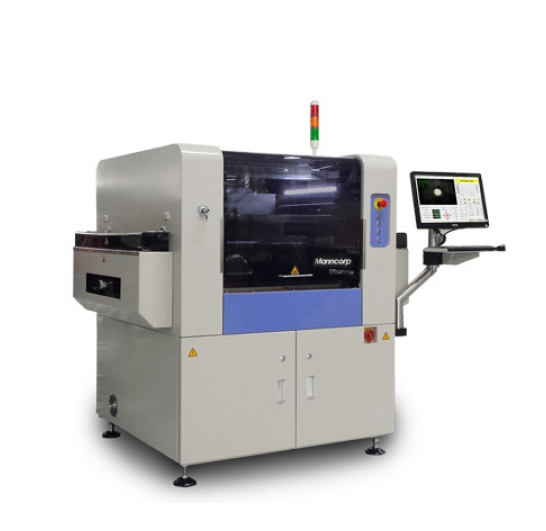

Manncorp AP430 자동 내부 스텐실 프린터

Manufacturer: Manncorp - USA

Model: AP430

Origin: China

Warranty: 12 months


Printing Speed: 12 to 40mm/s (servo controlled)

Vision Alignment System: Automatic (AT-Align system)

Stencil Frame Size (External Dimensions): 520 x 400 mm to 736 x 736 mm (20.5" x 15.7" to 29" x 29")

Board Size: Min: 50 x 50mm; Max: 400 x 350mm; Optional max: 450 x 350mm

Board Thickness: 0.4 to 3 mm

Board Warpage: Max PCB 1% of diagonal line

Blade Type: Metal 60°

XY Adjustment: ±10mm

Radial Adjustment: ±2°

Registration Repeatability: ±0.01mm

PCB Fixation: Screw clamping system and vacuum

CCD FOV: 5 x 7 mm

Vision Fiducial: Standard fiducial and any pads, 0.5 to 3 mm

Air & Power Requirements: 220VAC 50-60 Hz power, 75psi (5 bar) air

Dimensions (L x W x H): 57" x 44" x 60" (1450 x 1120 x 1525 mm)

Weight: 1433 lbs (650 kg)
