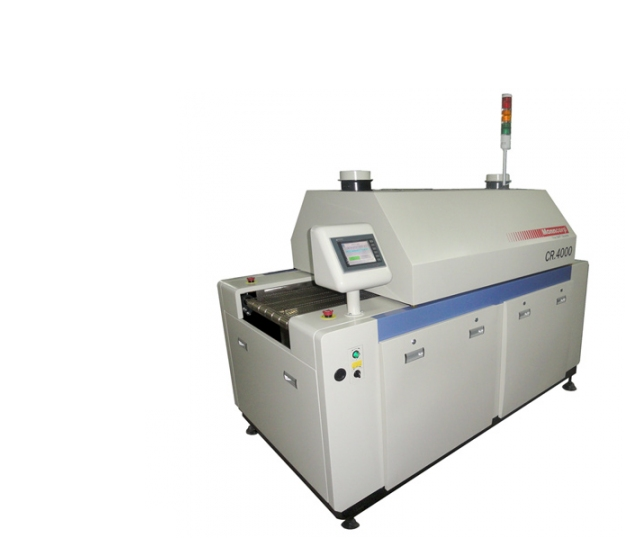

SMT Manncorp CR-4000T 4 존 SMT 건조 오븐

Manufacturer: Manncorp - US

Model: CR-4000T

Origin: China

Warranty: 12 months


Lead Free: Yes

Nitrogen Available: No

Mesh Belt Width: 20" (500mm)

Pin Conveyor: N/A

Conveyor Speed (per min); 7.8-35.4" (200-900mm)

Component Max. Height; 50mm upper

Forced Convection: Yes

Number of Heating Zones: 4 Independently Controlled Topside Convection Zones; 2 Lower Convection Zones Controlled by Topside; 1 Cooling Zone

Heated Tunnel Length: 52" (1320 mm)

Delta T: ±2° C

PID*: Yes

Max Temperature: 300° C

Ramp Time (from cold start): < 15 min

Flux Management System: No

Control: Touch Screen

On-Board Profiling: Yes

Dimensions: 2000 mm L x 1200 mm W x 1450 mm H (79" L x 47.2" W x 57" H)

Weight: approx. 850 kg (1874 lbs.)

Power: 220 V, 3-Phase, 60 A, 15KW

Required Active Exhaust: 400CFM per port

# of Exhaust Vents: 2

Battery Backup: UPS Uninterruptible Power Supply for Conveyor & PC

Hood Opening Mechanism: Automatic Raise and Lower
