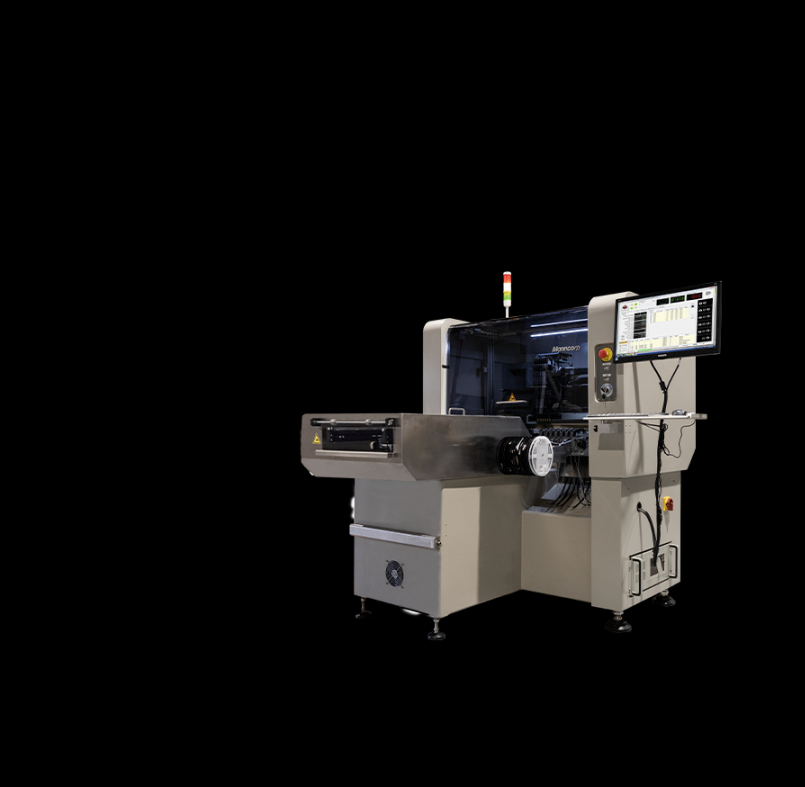

Manncorp MC-LEDV6 고속 LED 픽 및 플레이스

Manufacturer: Manncorp - US

Model: MC-LEDV6

Origin: China

Warranty: 12 months

Placement Specifications

Number of Placement Heads: 6

Placement Rate (IPC-9850)*: 30,000 CPH

Placement Accuracy: 50 µm, 3 Sigma

Minimum LED Size: 1 mm × 0.5 mm (0.039"× 0.019")

Maximum LED Size: 20 mm x 18 mm (0.78" x 0.70")

Capability for Other SMDs: Same maximum and minimum component size as LEDs

Pick Up Specifications

Tool Changer: Included

Number of Tools: 18 (3 Per Head)

Accepts Additional Tool Changers: Yes

Integral Vacuum: Yes

Board Handling Specifications

Board Handling Method: Magnetic fixture worktable (standard) or inline conveyor (optional)

Max. Board Length: 23.6" (600 mm) standard; 47.2" (1200 mm) optional; Full length assembled in a single pass

Max. Board Width: 12.6" (320 mm); 11.8" (300 mm) with inline conveyor option

Board Thickness: 0.008" to 0.12" (0.2 mm to 3.0 mm)

Fiducial Recognition/ Coordinate Correction: Yes

Bad Mark Detection: Yes

Feeder Capacity

Maximum Number of Feeder Ports: 16

Tape Feeder Sizes: 8, 12, 16 and 24 mm


Operating System: Windows®

PC, Keyboard, Mouse: Yes

Monitor Flat LCD

Teaching Camera: Yes

Numeric Data Entry: Yes

CAD Download: Yes

Step and Repeat for Matrix Boards: Yes

Bar Code Reader for Feeders & Packaging: Yes

Optimization Functions: Yes

Off-Line Programming: Yes

Mechanical Specifications

X Axis Drive Mechanism: High Speed Linear Drive

X Axis Encoding: Linear

Y Axis Drive Mechanism: Ball Screw

Y Axis Encoding: Rotary

X-Y Axis Resolution: 0.01 mm (0.00039")

Z Axis Resolution: 0.01 mm (0.00039")

Θ Axis Resolution: 0.09°

Θ Axis Range of Motion: 360°

Physical Specifications

Overall Dimensions(Approx. L x W x H): 600 mm Length Board: 48.4" x 44.4" x 58.7" (1230 mm x 1130 mm x 1491 mm); 1200 mm Length Board: 103.5" x 44.4" x 58.7" (2630 mm x 1130 mm x 1491 mm)

Approximate Net Weight: 0000 Kg (0000 lbs.)

Facility Requirements

Standard Voltage: 220 VAC, Single Phase

Air Pressure: 80 psi, 4 CFM, 5.5 Bar

Service and Support

Remote Diagnostics: Ethernet

Warranty (Major Components): 1 Year
