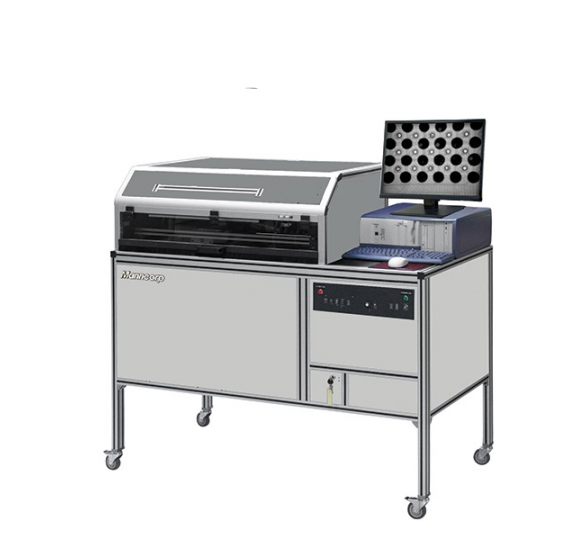

Manncorp MX1 X-ray 검사 시스템

Manufacturer: Manncorp - USA

Model: MX1

Origin: China

Warranty: 12 months


Contrast Resolution: Can resolve .001 gold wire

Spatial Resolution: 20 line-pairs/mm (standard); 100 line-pairs/mm (w/ optional 10 μm x-ray source)

Anode Voltage: 80kV

Anode Current: 150 microamps (internal adjustment)

Focal Spot Size: 35 μm (standard); 10 μm (optional)

Focal Spot to Image Plane Distance: 4-6" (101.6 mm - 152.4 mm)

XRTV Zoom Camera: 4X-50X magnification (standard); up to 225X (optional)

X-Y Positioner Range: 14" x 14" (356 mm x 356 mm)

Operating Voltage: 120v/220v, 50-60hz

Dimensions: 50"H x 60"W x 33"D (1270mm x 1524mm x 838.2mm)
