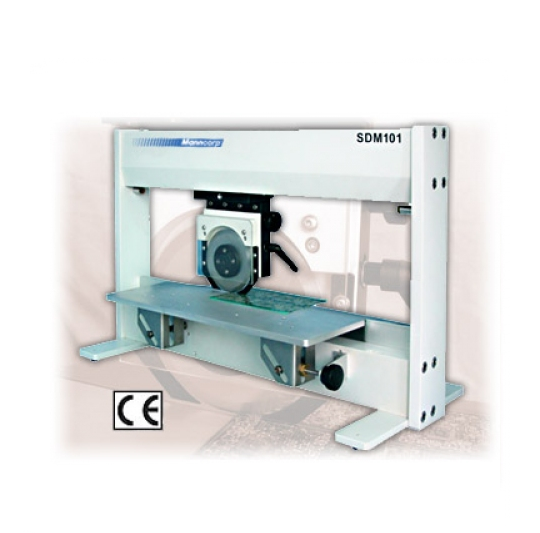

Manncorp SDM-101 수동 PCB 절단기

Manufacturer: Manncorp - USA

Model: SDM-101

Origin: China

Warranty: 12 months


PCB Thickness: 0.8 mm to 3.0 mm

Maximum Depaneling Length: 460 mm (18.1") or 600 mm (24")

V-Scoring Lines:

Depth of scoring (A): ≥ 0.25 mm

Remaining PCB thickness (B): 1.0 mm max

Component from scoring (C): ≥ 1 mm

Scoring angle θ: ≥ 20˚ (typical)

Max. component height (D): 32 mm

Depaneling Mode: Manual

Separating Speed: Dependent on operator

Production Rate: Moderate volume

Scoring Angle: 20˚

Minimum Component Distance from V-Groove: 1 mm

Maximum Component Height: 32 mm (1.26")

PCB Materials: FR4, CEM3, etc.

Processing table: 500 x 165 mm (19.7" x 6.5")

Dimensions (L x W x H): 750 mm x 240 mm x 742 mm (29.5" x 9.4" x 18.5")

Net Weight: 32 kg (70.5 lbs)

Shipping Weight: 66 kg (146 lbs)
