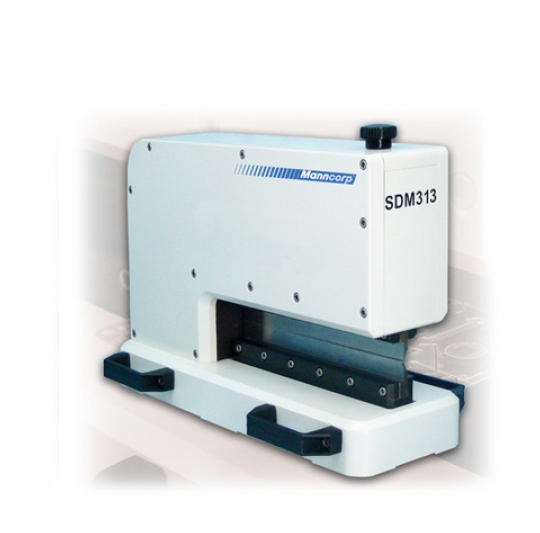

Manncorp PCB 디파넬링 기계 SDM-313
생산업체: MANNCORP Model: SDM-313 출처: China 보증: 12 Month - 견적요구
- 연락처
Manufacturer: Manncorp - USA
Model: SDM-313
Origin: China
Warranty: 12 months
PCB Thickness: 0.5 mm to 1.2 mm (with minimum 0.15 mm scoring depth); Up to 2.0 mm (with minimum 0.5 mm scoring depth)
Maximum Depaneling Length: 300 mm (11.8") with 0.5 mm remaining PCB thickness; 200 mm (7.9") with 1.0 mm remaining PCB thickness
V-Scoring Lines:
Depth of scoring (A): ≥ 0.15 mm
Remaining PCB thickness (B): 1.0 mm max
Component from scoring (C): ≥ 0.5 mm
Scoring angle θ: ≥ 20˚ (typical)
Max. component height (D): 20 mm
Depaneling Mode: Pneumatic
Separating Speed: N/A
Production Rate: High volume
Scoring Angle: 20˚
Minimum Component Distance from V-Groove: 0.5 mm
Maximum Component Height: 20 mm
PCB Materials: FR4, CEM3, etc.
Processing table: Aluminum, FR4, CEM3, etc.
Air Requirement: 4 to 6 bar
Dimensions (L x W x H): 259 mm x 595 mm x 380 mm (10.1" x 23.4" x 14.9")
Net Weight: 140 kg (309 lbs)
Shipping Weight: 166 kg (366 lbs)
