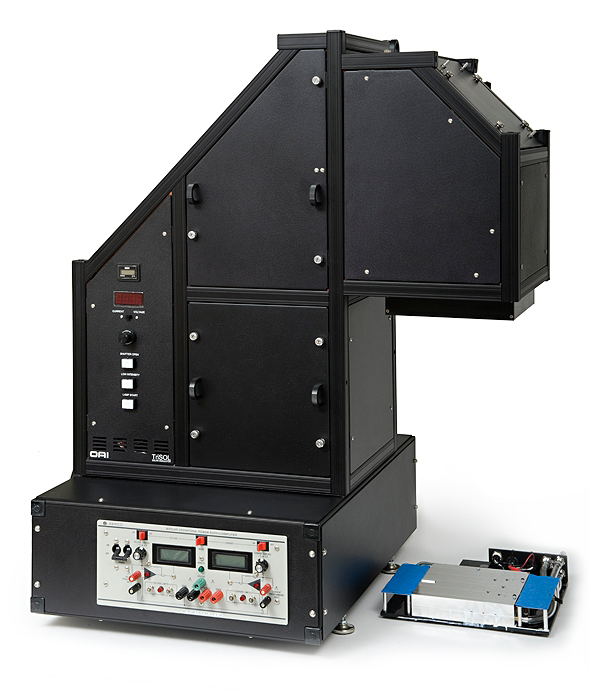

OAI CPV LA CPV Solar Simulators (~1-6Suns)
생산업체: OAI Model: CPV LA - 연락처
Irradiance: ~1-6Suns
Class: AAA
Spectral: ±25%,Spatial:<2%,and Temporal:<0.5%(STI) Also available in Class A+(<±12.5%)Spectrum upgrade
Standard: IEC 60904-9,JIS C8912,and C8933,and ASTM E927
Beam Size(cm x cm): 15.6 x 15.6(~6Sun)
Lamp/Wattage: Xe Short Arc 4.0KW
Incidence Angle: Half angle <±1.0˚
Working Distance: ~22inch
Filters Options: AM 1.5G,AM1.5D,AM 1.0,AM 1.1 and Other Filters
Spectral Match Options: 350-1800nm
Power Reduction: 80%-120% Control of Power Supply to Reduce Power
Shutter Speed: 50ms to Open and 50ms to Close
Exposure and Shutter Control: I-V Software Allows Control of Exposure Time>100ms,and Number of Times Shutter Opens and Closes for a Measurement
Safety: UL 60950
