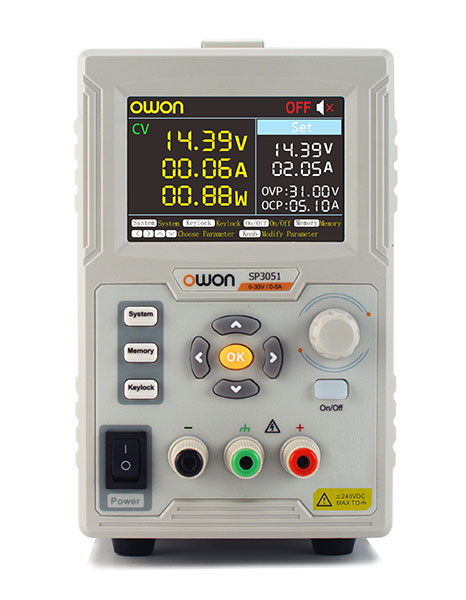

OWON SP3051 DC 전원 (150W)

Manufacturer: OWON

Model: SP3051

Origin: China

Warranty: 12 months


Channel: Single Channel Output

Total Output Power: 150W

Channel Output: 0 - 30V / 0 - 5A × 1-CH

Display :3.7 inch color LCD display

Dimension: 117mm(L) × 194mm(H)× 295mm(D)

Weight: Approx. 2.30 kg

Interface: RS232

MEASUREMENT

Rated Output (0℃-40℃): Voltage 0 - 30V/ Current 5A

Load Regulation: Voltage ≤30mV/ Current ≤50mA

Line Resolution: Voltage ≤10mA/ Current ≤20mA

Setting Resolution: Voltage 10mV/ Current 10mA

Readback Resolution: Voltage 10mV/ Current 10mA

Settings Accuracy (within 12 months) (25℃±5℃): Voltage ≤0.3% + 10mV/ Current ≤0.3% + 20mA

Readback Accuracy (25℃±5℃): Voltage ≤0.3% + 10mV/ Current ≤0.3% + 20mA

Ripple/Noise (20Hz-20MHz)

Voltage (Vp-p) ≤30mVp-p

Voltage (rms) ≤3mVrms

Current (rms) ≤30mArms

Output Temperature (0℃-40℃)

Voltage ≤0.3% + 10mV

Current ≤0.3% + 20mA

Readback Temperature Coefficient

Voltage ≤0.3% + 10mV

Current ≤0.3% + 20mA

Response Time: ≤1.0ms

Storage: 5 groups of data

Working Temperature: 0-40℃

Accessories

Power Cord

Manual

Fuse

RS232 to USB Module( optional )

Test Leads(optional)

Detail

Datasheet
