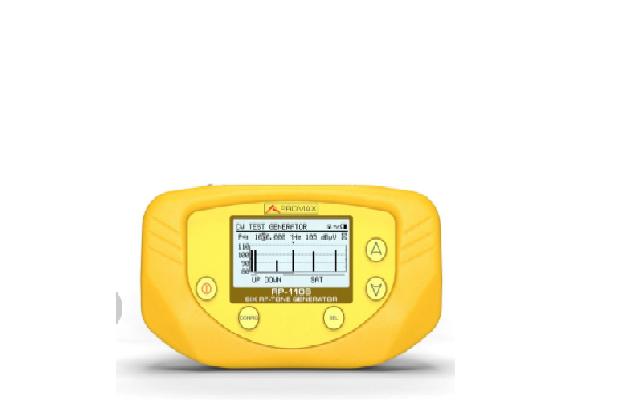

동축 케이블 용 Promax RP-110 테스트 신호 발생기

Manufacturer: Promax

Model:RP-110

Origin: England

Warranty: 12 months

FREQUENCY

Carriers frequency range

P1: 5.00 MHz to 10.00 MHz.

P2: 55.00 MHz to 100.00 MHz.

P3: 460.00 MHz to 540.00 MHz.

P4: 800.00 MHz to 1000.00 MHz.

P5: 1450.00 MHz to 1750.00 MHz.

P6: 1850.00 MHz to 2150.00 MHz.

Resolution: 25 kHz.

Accuracy:  ± 50 ppm (at 25 ºC).

CARRIERS LEVEL

Carriers level:  80 to 110 dBμV (selectable in 1dB steps).

Signal level resolution:  1 dB.

Signal level accuracy:  ± 2 dB (at 25 °C).

Impedance:  75 Ω.

Flatness in a band:  2 dB.

COMUNICATIONS

USB Interface:  For remote control and firmware upgrading.

POWER SUPPLY

Battery:  7,4 V Li-Ion.

Low battery indication:  Graphical indicator on the screen: .

Autonomy:  More than 5 hours.

Battery charge:  Through fast internal charger.

External

Voltage:  12 V DC.

Power:  15 W.

Mains adapter:  From 90 V to 250 V, 50-60 Hz (included).

September 2016 23

ENVIRONMENTAL CONDITIONS : Equipment specifications are set in these environmental operating conditions. Operation

outside these specifications are also possible. Please check with us if you have specific

requirements.

Altitude : Up to 2000 metres.

Temperature range:  From 5 °C to 40 °C.

Maximum relative humidity : 80 % (up to 31 °C), decreasing lineally up to 50% at 40 °C.

MECHANICAL FEATURES

Dimensions:  180 (W) x 95 (H) x 50 (D) mm.

Weight:  400 g. (including battery and protective bag).

ACCESSORIES INCLUDED

AL-101B:  Mains adapter 90 - 250 V AC.

CA-005:  Mains cord CEE - 7.

AA-012:  Car lighter adapter cable.

AD-055:  F/h – BNC/h Adapter.

AD-057:  F/h – F/h Adapter.

CC-030:  F/F Coaxial Cable.

DC-269:  Transport case.

CC-041:  USB Cable.

OPTIONAL ACCESORIES

DC-270:  Transport suitcase.
