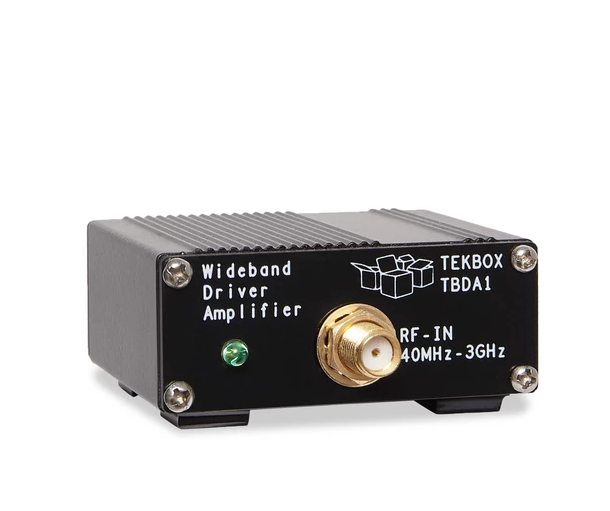

Tekbox TBDA1/28dB 광대역 드라이버 앰프

Input: 50 Ohm, SMA female

Output: 50 Ohm, SMA female

Nominal supply Voltage: 5V, typ. 225mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: +6dBm

1dB output compression point @ 40MHz: +21.5dBm

1dB output compression point @ 2 GHz: +22.5dBm

3rd order output intercept point @ 40 MHz: +39.8dBm

3rd order output intercept point @ 2 GHz: +42.8dBm

Reverse isolation S12: < -40dB

Noise Figure: 3.1 … 4.1 dB

Gain:

25 MHz: 26 dB

50 MHz: 28.4 dB

100 MHz: 28.6 dB

500 MHz: 28.6 dB

1 GHz: 28.8 dB

1.5 GHz: 28.3 dB

2 GHz: 27.2 dB

2.5 GHz: 28.5 dB

3 GHz: 28.9 dB
