Tekbox TBPS01-TBWA2/40dB,TBMDA1 근거리 프로브 세트 + 40dB 광대역 증폭기, 변조 된 광대역 드라이버 증폭기

  • 생산업체:Tekbox
    Model: TBPS01-TBWA2/40dB,TBMDA1
    보증: 12 Month
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 바로 구매하기
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

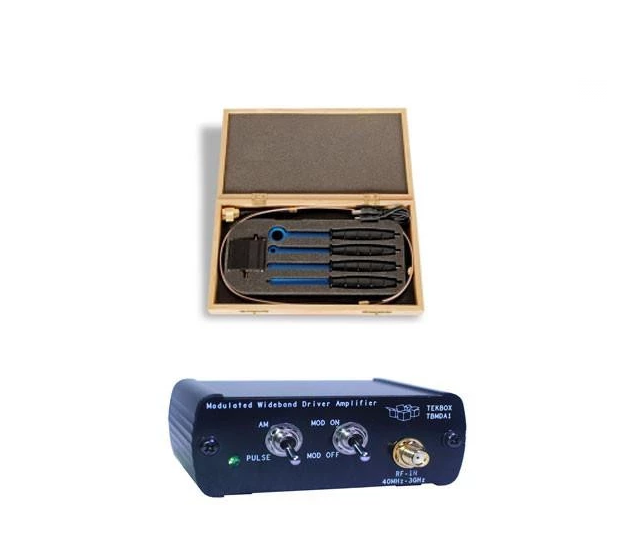

Features of probes:

Slim design for good access in between tightly spaced components

Shielded loops to avoid picking up common mode noise; insensitive to the human hand

Frequency range: up to 6GHz, see coupling plots of the respective probes

SMB connectors to avoid twisting the RF cable when scanning DUTs

Insulated with rubber coating

Dimensions of probes:

H20 H-Field: 170 mm (length); 20 mm (loop); n.a. (tip)

H10 H-Field: 170 mm (length); 10 mm (loop); n.a. (tip)

H5 H-Field: 170 mm (length); 5 mm (loop);  n.a. (tip)

E5 E-Field: 170 mm (length); n.a. (loop);  5 mm (tip)

Technical Data of TBWA2/40dB:

Input: 50 Ohm, SMA

Output: 50 Ohm, SMA

Nominal supply Voltage: 4.5 - 5V, typ. 210mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: -10dBm

1dB output compression point @ 2GHz: +20dBm

Reverse isolation S12, 0.1 …6GHz: 40dB

Noise Figure @ 2GHz:  5 dB

Gain:

1 MHz:  30 dB

10 MHz: 40.2 dB

100 MHz: 40.2 dB

500 MHz: 40 dB

1 GHz: 39.5 dB

3 GHz: 36.4 dB

4.5 GHz: 34.6 dB

6 GHz: 34.7 dB

Specifications of TBMDA1:

Input: 50 Ohm, SMA female

Output: 50 Ohm, SMA female

Nominal supply Voltage: 5V, typ. 235mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: +9dBm

1dB output compression point @ 40MHz: +21.5dBm

1dB output compression point @ 2 GHz: +22.5dBm

3rd order output intercept point @ 40 MHz: +39dBm

3rd order output intercept point @ 2 GHz: +42dBm

Reverse isolation S12: -45dB

Noise Figure: 3 … 4 dB

Internal modulation frequency AM: 1 kHz ±10%

Internal modulation frequencies PM: 1 kHz ±10%, 217 Hz ±20%

Duty cycle, PM: 50% ±10% @ 1 kHZ; 12.5% ±20% @ 217 Hz

Gain:

25 MHz: 21.6 dB

50 MHz: 24.9 dB

100 MHz: 25.5 dB

500 MHz: 25.6 dB

1 GHz: 24.9 dB

1.5 GHz: 24.1 dB

2 GHz: 22.2 dB

2.5 GHz: 22.8 dB

3 GHz: 25.8 dB

Details

Manual
