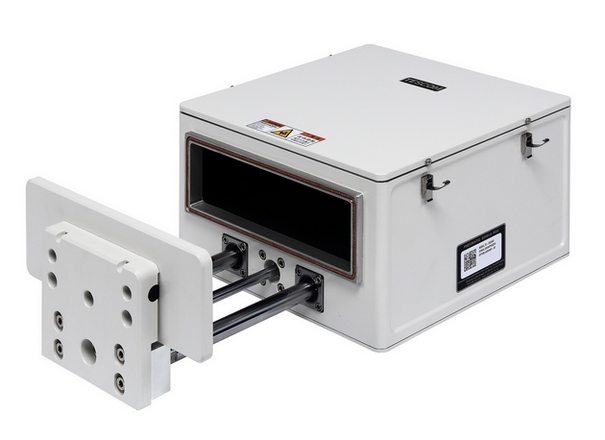

TESCOM TC-5924AP 공압 실드 박스

◈ Mechanical Specifications

※ RF Connectors without I/O interface panel : two(2) N(f) outside and SMA(f) inside

※ Line voltage : 100 - 240 VAC, 50/60 Hz, 15 watt max.

※ Remote control : RS-232C, 3 wire, DB9(s)

※ Air connection

- Main connector : 6 mm OD hose, one-touch push-on fitting

- Input air pressure : 5 to 10 bar

※ Dimension

- Inside : 270(W) x 287(D) x 102(H) m

- Outside:  341(W) x 401(D) x 208(H) mm, door closed. 606(D) mm, door open

※ Weight : Approx.20 kg

※ Packing

- Size : 520(W) x 550(D) x 340(H) mm

- Weight : Approx.25kg

The size or weight of a package may vary on how to pack a package.

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectiveness (dB)

- 100 to 2000 MHz : > 80 dB

- 2000 to 3000 MHz : > 80 dB

- 3000 to 6000 MHz : > 70 dB


Detail

Datasheet


- Key Features

◈ High RF Shielding

◈ Pneumatic control of lid open-close and optional test fixture motions

◈ EMI filters on all Data and DC lines

◈ Easily customizable to meet various test needs

◈ RS-232C Remote Control
